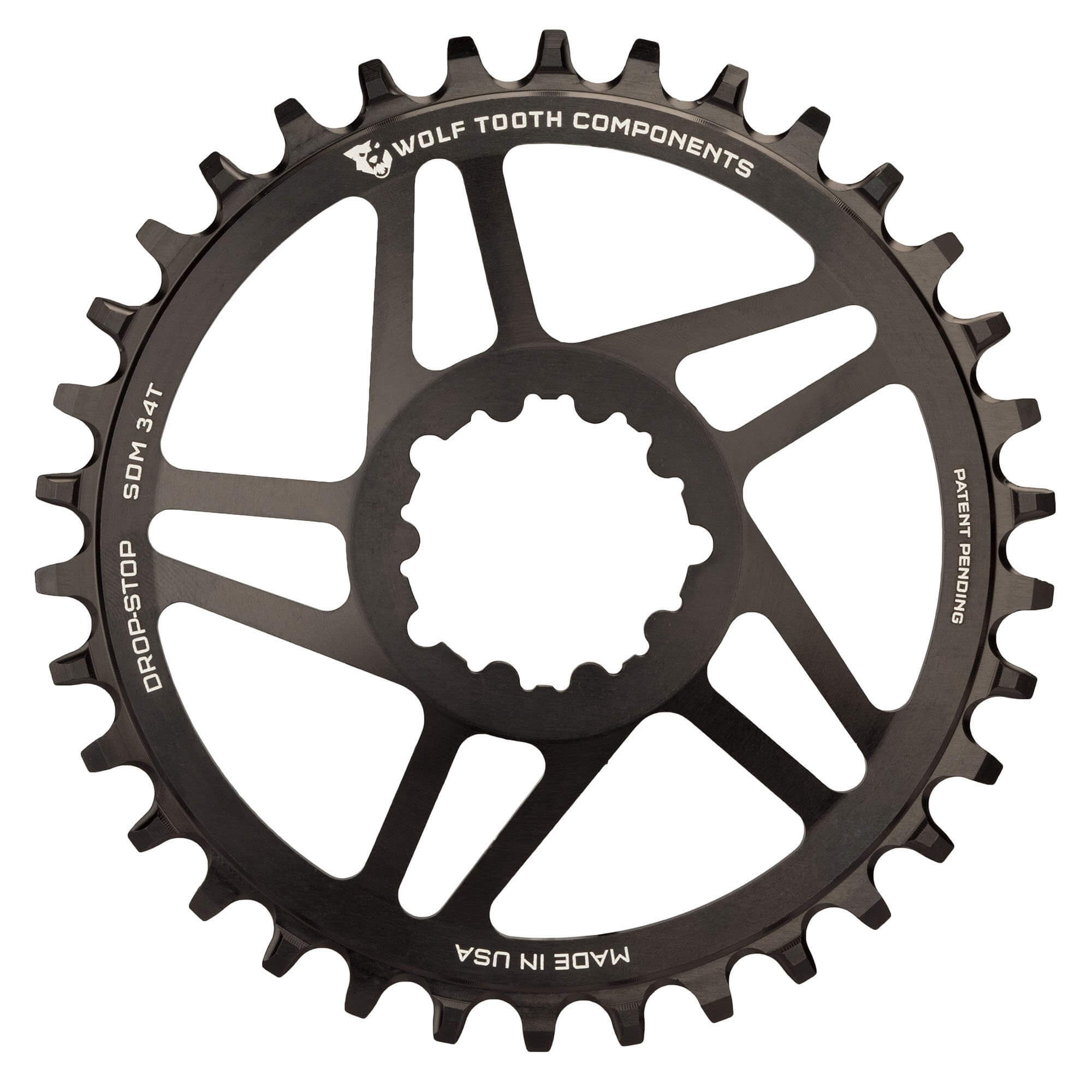

Wolf Tooth Direct Mount Chainrings - SRAM

SDM® chainrings replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet. They are available in 3 different offsets: standard 6mm offset, Boost 3mm offset, and BB30 short spindle 0mm offset.

Compatibility

  • These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle. Note that the SRAM 12spd Red and Force AXS use a different 8 bolt mounting interface that is not compatible with these chainrings.
  • Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
  • There are 3 offsets:
    • Standard: 47mm chainline, 6mm offset for cyclocross and road cranks
    • Standard: 49mm chainline, 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30
      • Boost: 52mm chainline, 3mm offset
      • BB30: 49mm chainline, 0mm offset for BB30 short spindle cranks
    • Fat bikes: If your fat bike has a 170/177 rear hub spacing, use the standard 6mm offset
    • Praxis Works Road/CX cranks use the 6mm offset.  Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.

    Tech Specs

    Weights: 26t • 52g | 28t • 59g | 30t • 65g | 32t • 70g | 34t • 75g | 36t • 81g | 38t • 90g | 40t • 106g | 42t • 111g
    Material: 7075-T6 aluminum
    Made in the USA
