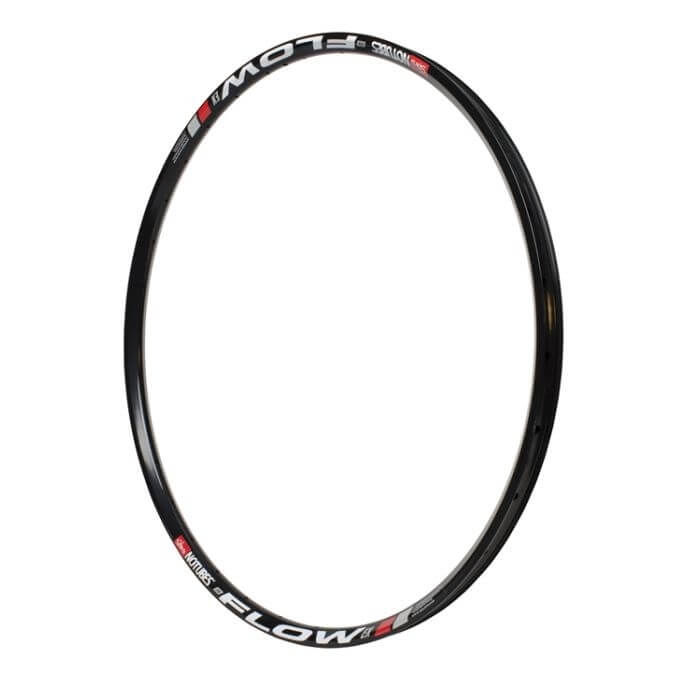

Stan's NoTubes ZTR Flow EX Rims
Features:
- For enduro, trail, and all mountain use
- Bead Socket Technology (BST) for superior tubeless performance
- Rim width: 29.1mm external and 25.5mm internal for maximum tire volume
- Reinforced spoke bed
- Stronger and lighter low-profile sidewalls for quicker acceleration
- Compatible with standard tires when used with or without tubes
Description:
With multiple World Cup and World Championship victories already in the books, improving the legendary Flow wasn't easy, but input from the best riders in the world and countless hours spent sweating even the smallest of details has led to a rim that redefines what even we thought was possible.
The new Flow EX is lower, wider, and meaner, offering a lower profile sidewall and redesigned Bead Socket Technology for maximum durability and tire seal on even the most punishing of technical trails. We kept the weight low, but the new EX offers 14% thicker sidewalls for maximum dent resistance and a 33% thicker spoke bed for added pull-through strength. Increasing the outside width of the rim to 29.1mm and the interior width to 25.5mm let us reshape the bead socket for an even tighter seal and allowed our internal arch to add even more stiffness to the rim's structure. The new Flow EX: the strongest, fastest rolling, and best sealing tubeless rim available for 26-inch, 29-inch and 650b tires sizes just got even better.

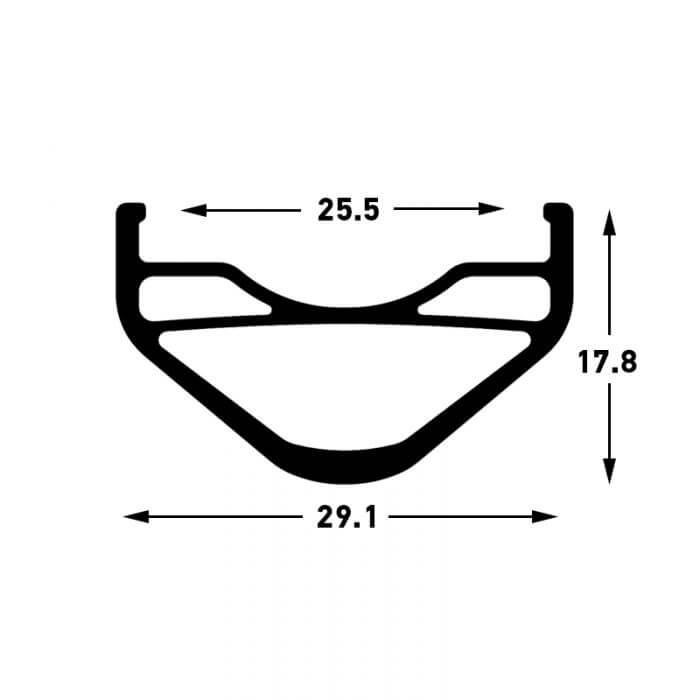

| Rim Internal Width: | 25.5mm | ETRTO: | 559x25.5 (26”) / 584x25.5 (27.5”) / 622x25.5 (29”) | |
| Rim External Width: | 29.1mm | ISO: | 29.1 | |
| Rim Depth: | 17.8mm | Tape: | 25-27mm | |
| Hole Count: | 32-hole or 36-hole (29” | Valve: | Presta | |
| Rim Color: | Black | Max Spoke Tension: | 125KgF/1225N | |
| Material: | 6061 Aluminum Alloy | Max Pressure with 2.3" Tire: | 38psi | |
| Brakes: | Disc only | Max Pressure with 2.7” Tire: | 35psi | |
| ERD: | 537mm (26”) / 562mm (27.5”) / 601mm (29”) | Rim Weight: | 490g (26”) / 510g (27.5) / 545g (29”) |
