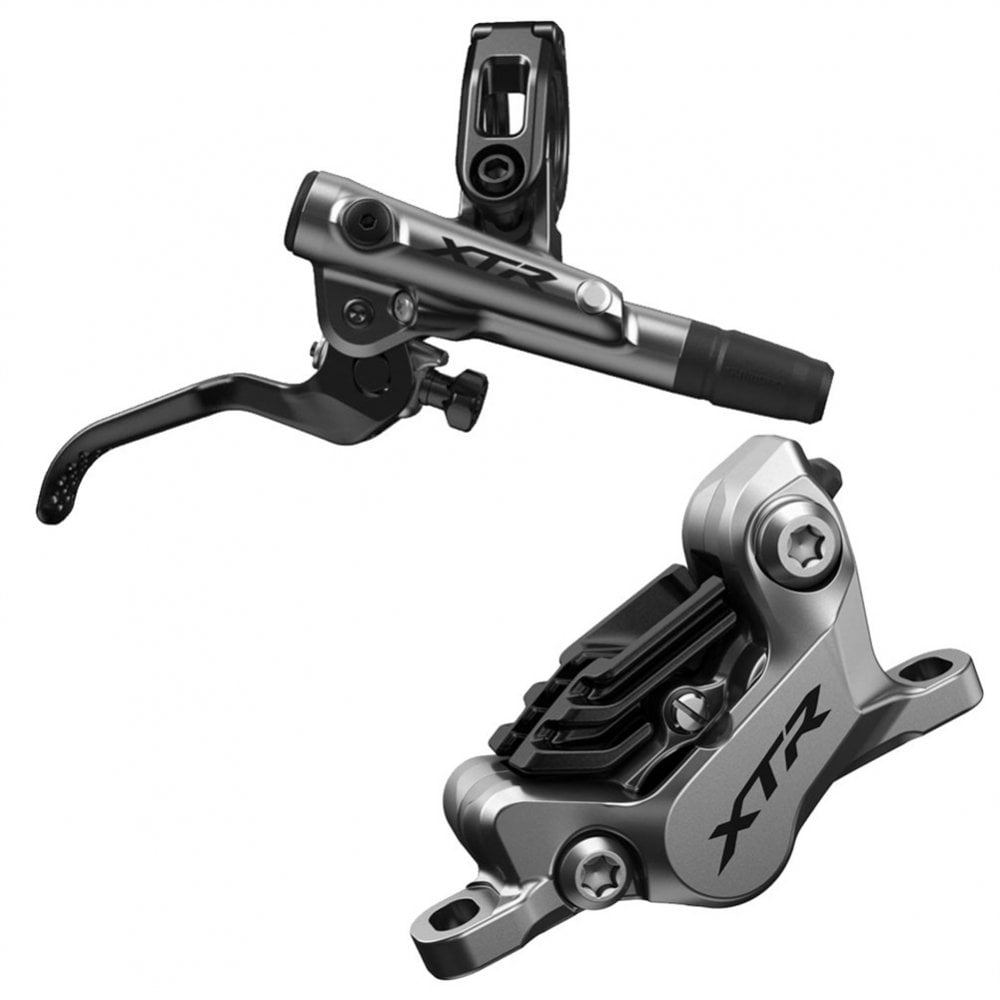

Shimano XTR M9120 Hydraulic Disc Brake - 4 Piston (Front & Rear)
BR-M9120

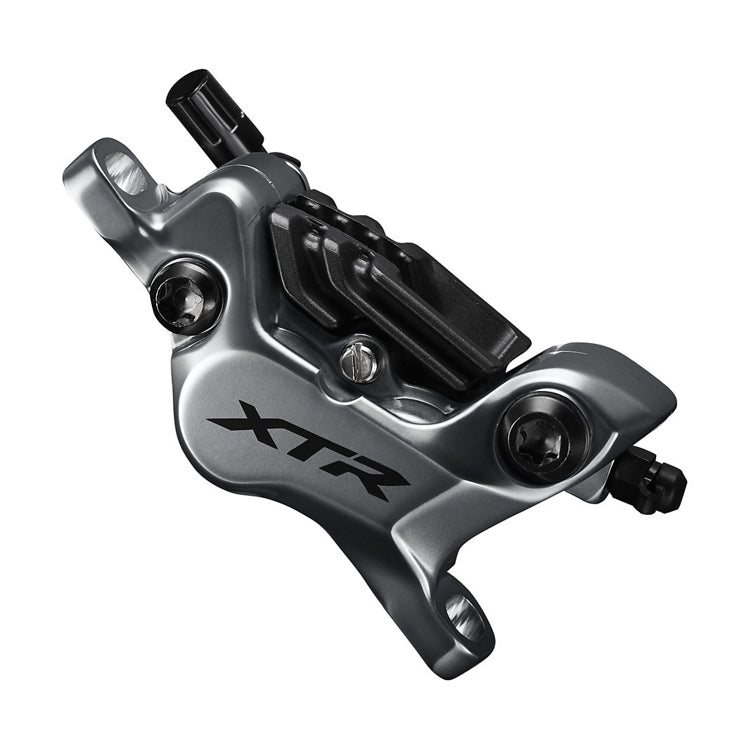

XTR - ICE TECHNOLOGIES - 4-Piston - Hydraulic Disc Brake Caliper
The XTR M9120 caliper features a MONO-BODY design which is machined from a single cold forged block to maximize rigidity and four ceramic pistons for perfect, Rider Tuned stopping power.
-
FEATURE
- Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000
- 10% braking power up (vs. M9020)
BENEFIT- High-performance brake control
- High power
- Banjo type connection and inside hose routing

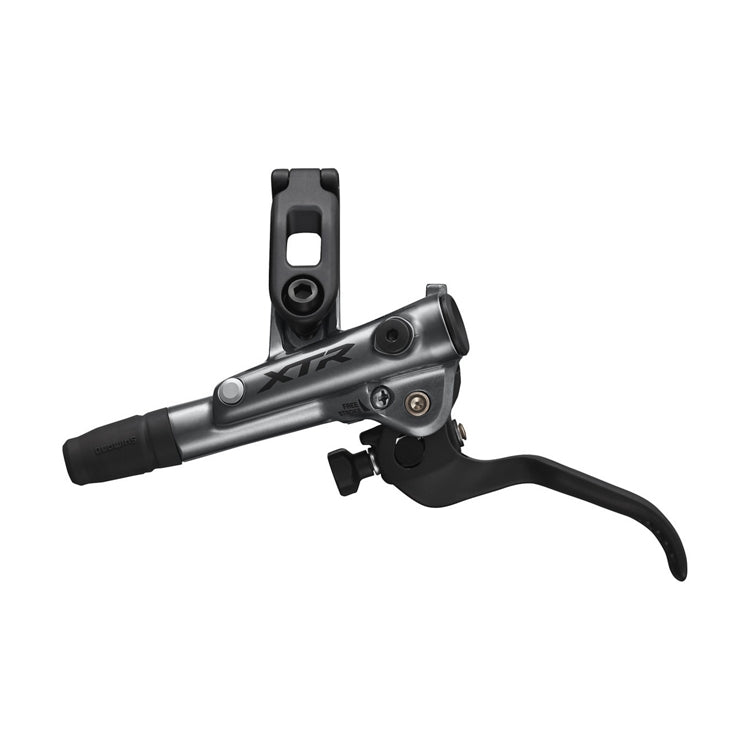

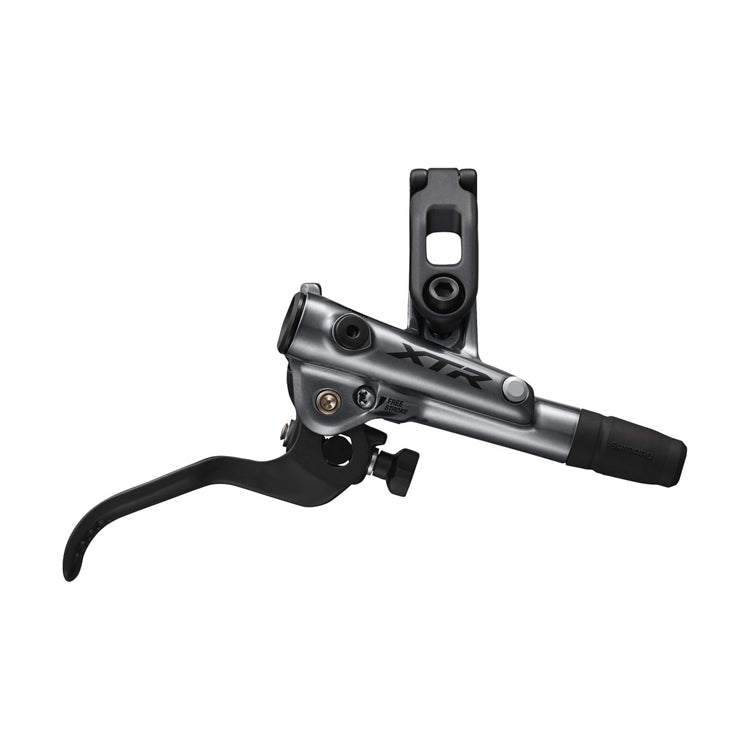

PRODUCT SPECIFICATIONS - LEVER
| MODEL NO | BL-M9120 |
|---|---|
| SERIES | XTR M9100 Series |
| Color | Series color |
| Average weight | 385 g |
| Brake hose (Kit) | SM-BH90-SBM |
|---|---|
| Brake Type | Hydraulic disc brake |
| Clamp band_Open clamp band | ✔ |
| Compatible shifting lever mount_I-SPEC EV | ✔ |
| Compatible Shifting Lever Mount | Clamp band, I-SPEC EV |
| Free stroke adjust | ✔ |
| Funnel bleeding | ✔ |
| Hose joint | Straight |
| J-kit option available | ✔ |
| Lever size (Finger) | 2 |
| Oil | SHIMANO Mineral |
| Reach adjust_Toolless | ✔ |
| Reach Adjust Type | Toolless |
| Recommended brake caliper | BR-M9120 |
| Servo wave mechanism | ✔ |
| Clamp Band Type | Yes |
| Compatible shifting lever mount_Clamp band | ✔ |
PRODUCT SPECIFICATIONS - CALIPER
| MODEL NO | BR-M9120 |
|---|---|
| SERIES | XTR M9100 Series |
| Color | Series color |
| Average weight | 385 g (w/ radiator fin) |
| Remarks | ** Titanium |
|---|---|
| Brake hose color (kit) | Black |
| Brake hose (kit) | SM-BH90-SBM |
| Brake Type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Wiring |
| Caliper fixing bolt_Tool size | ** 4 mm |
| Hose joint | Banjo |
| J-Kit spec (for OEM) | ✔ |
| Mount type(available for IS mount with mount adapter) | Post-type |
| Oil | SHIMANO Mineral |
| Pad_Standard | N03A Resin pad (w/ radiator fin), N04C Metal pad (w/ radiator fin) |
| Pad mount | Pad axle |
| Piston | 4 |
| Recommended brake lever | BL-M9120 |
| Recommended brake rotor | RT-MT900 |
| Ice technology pad compatible caliper | ✔ |
