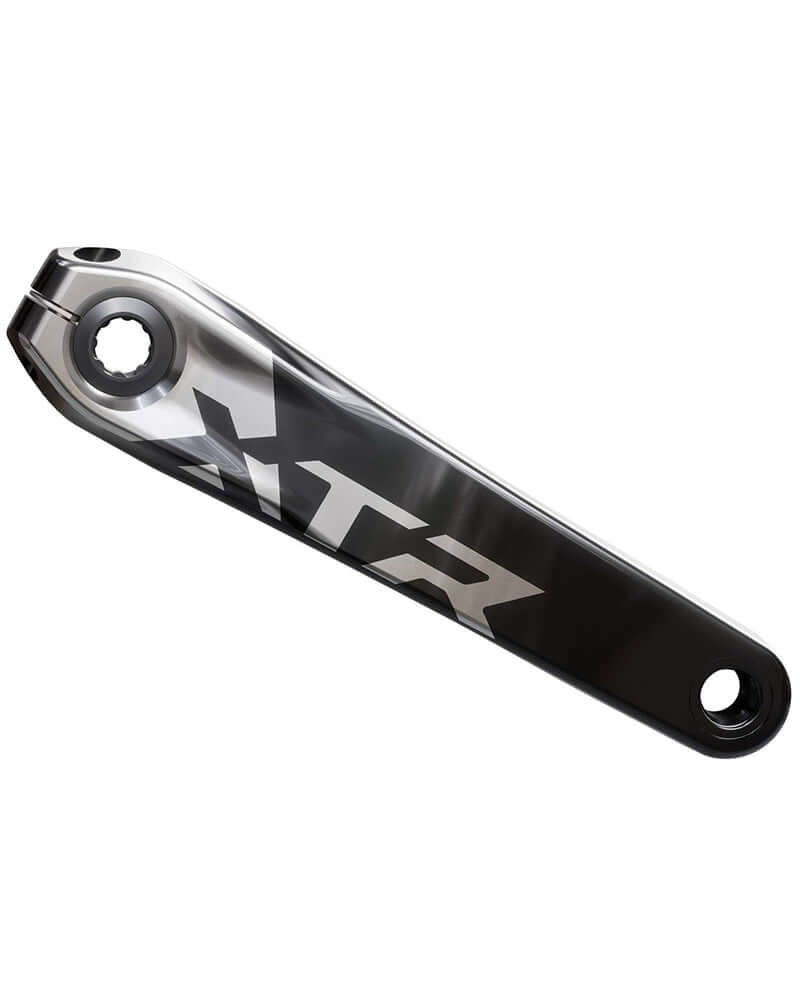

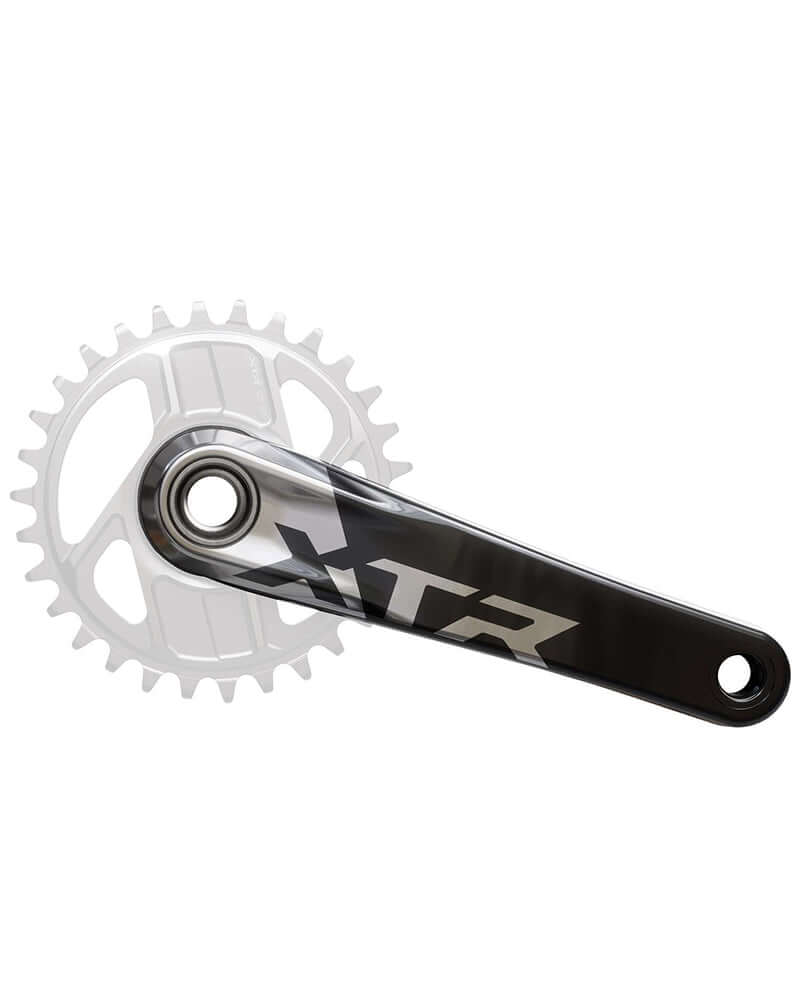

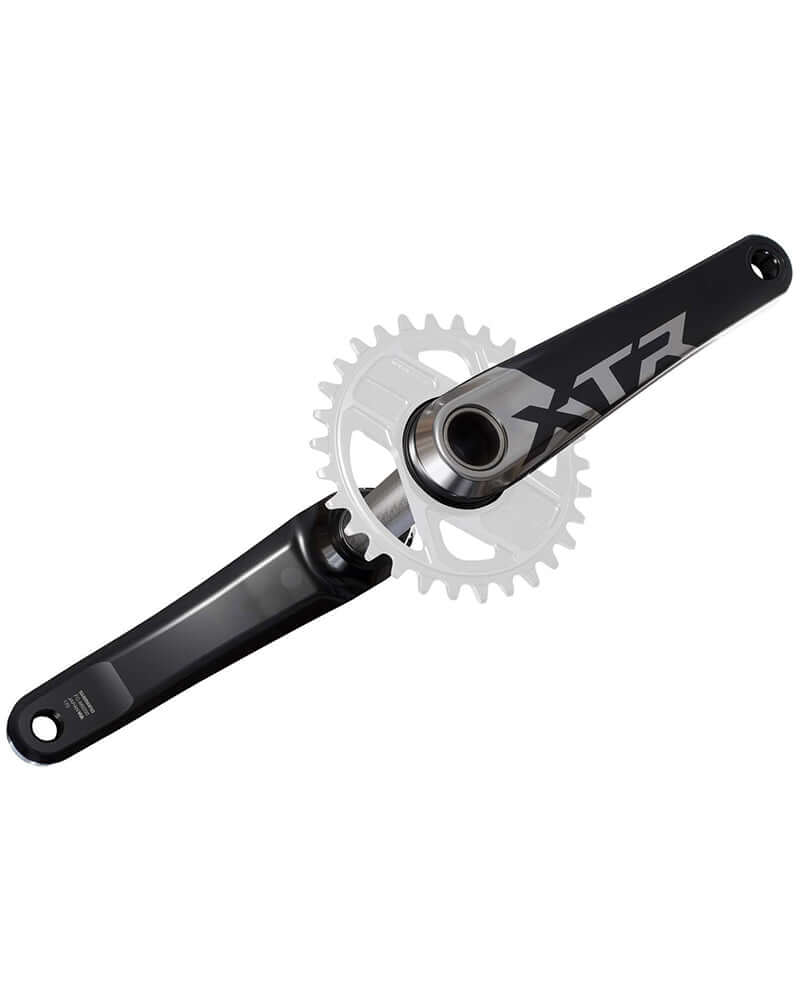

Name: Shimano XTR FC-M9220 Crankset - Di2 Series
Brand: Shimano
SKU: 50169933463799
Price: 368.0 SGD
Availability: InStock

Description
Shipping & Return

Description

XTR ENDURO CRANKSET 176 MM Q-FACTOR 55 MM CHAIN LINE 12s - FC-M9220

Built for the rigors of the Enduro World Series racing, FC-M9220 is the strongest XTR crankset ever produced. HOLLOWTECH II forging and a thicker steel spindle ensure this crank survives the burliest of impacts while optimizing rigidity and weight. Offered in lengths from 160-175 mm and with all sizes of the reinforced SM-CR96 direct-mount chainring, there is a specification of FC-M9220 for every enduro rider.

FEATURE

Enduro Specific Spindle: A thicker enduro-specific spindle raises the mark for durability and big-hit survivability.

FEATURE

HOLLOWTECH II: Shimano’s forging provides optimal weight, stiffness and rigidity for enduro riding and racing.

FEATURE

Q Factor/Chain Line: An enduro-optimized Q Factor brings race-feel familiarity, while a 55 mm chain line offers wide frame compatibility.

FEATURE

Compatibility: M9220 cranks come standard with a 24 mm spindle and are compatible with Shimano’s Threaded and Press Fit bottom brackets.

Model No		FC-M9220
Series		XTR
Rear speeds		12
Compatible chain		HG 12-speed
Chain line (mm)		55
O.L.D.	Thru (mm)	148
P.C.D. (mm)		Direct
Chainring combination		28T, 30T, 32T, 34T
Q-factor (mm)		176
	160
Crank	165
arm length (mm)	170
	175
Optional chain guard	Without chain/bash guard
HOLLOWTECH II
Compatible bottom bracket type	Outboard
Recommended bottom bracket	Threaded (normal)	SM-BB93
	Press-Fit	SM-BB94-41A
Threaded bottom bracket shell	68
width (mm)	73
Crank fixing screw included
