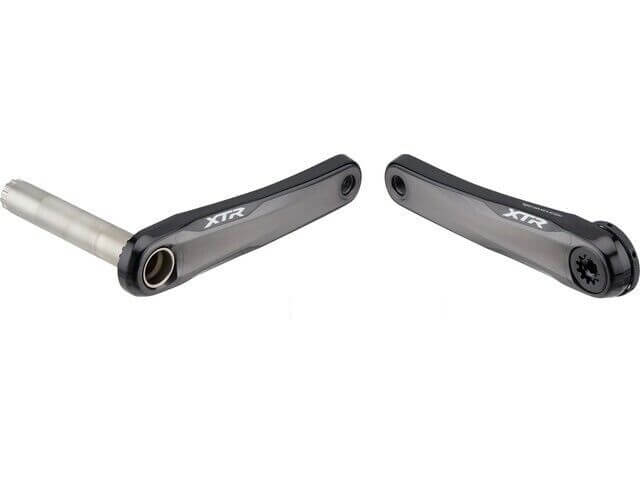

Shimano XTR FC-M9130 Crankset - 165mm

Length :
Terms & conditions


SHIMANO XTR - HOLLOWTECH II - MTB Crankset - 171 mm Q-Factor - 1x12-speed

The SHIMANO XTR FC-M9130-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a narrow 171 mm Q-factor. The FC-M9130-1 uses a 56.5 mm chain line and can be converted between 1x and 2x, with 30, 32 and 34T chainrings available. On offer are 165, 170, and 175 mm crank arms.


  • Superior chain retention for smoother driving even over rough terrain
  • Special MTB gear teeth profile improves chain engagement and retention
  • Rigid and lightweight design for trail riding with direct mount chainring


    MODEL NO FC-M9130-1
    SERIES XTR M9100 Series
    Color Series color
    Average weight 560 (30T) 563 (32T) 577 (34T)
    Rear speeds 12
    Compatible chain HG 12-speed
    Chain line (mm) 56.5
    O.L.D.|Thru (mm) 157
    P.C.D. (mm) Direct
    Spider/gear arms 4
    Chainring combination 30T, 32T, 34T
    Q-factor (mm) 171
    Crank arm length (mm)|165
    Crank arm length (mm)|170
    Crank arm length (mm)|175
    Optional chain guard|Without chain/bash guard
    Compatible bottom bracket type|Outboard
    Recommended bottom bracket|Threaded (normal) SM-BB93
    Recommended bottom bracket|Press-Fit SM-BB94-41A
    Threaded bottom bracket shell width (mm)|68
    Threaded bottom bracket shell width (mm)|73
    Crank fixing screw included
