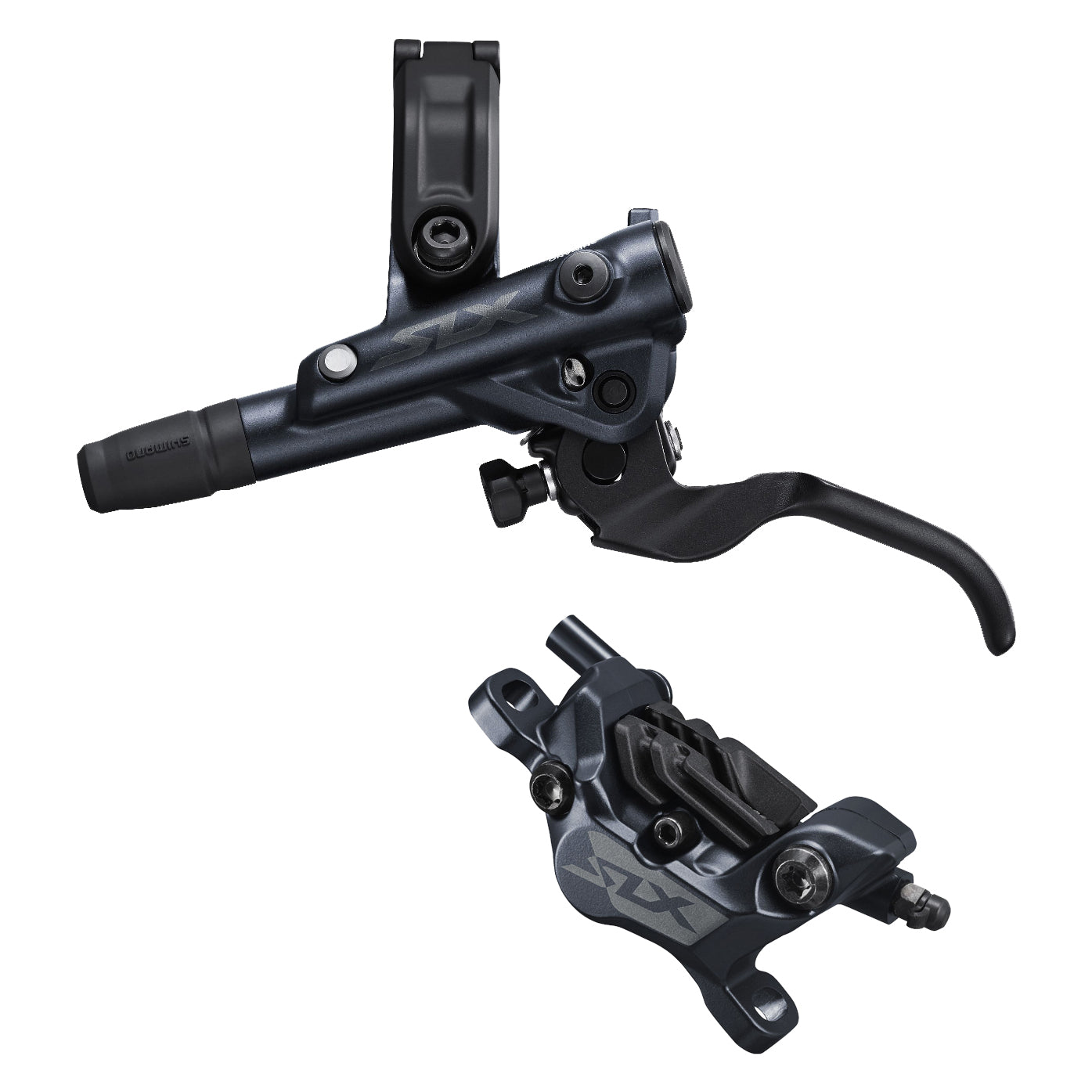

SLX - 4-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper
The SLX M7120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
-
FEATURE
- Quicker Piston retraction
- Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M7000)
- Four Piston
- Banjo type connection and inside hose routing
BENEFIT- Stable and versatile high-performance brake control
- High power braking instills greater downhill confidence and control
- Quick and easy assembly

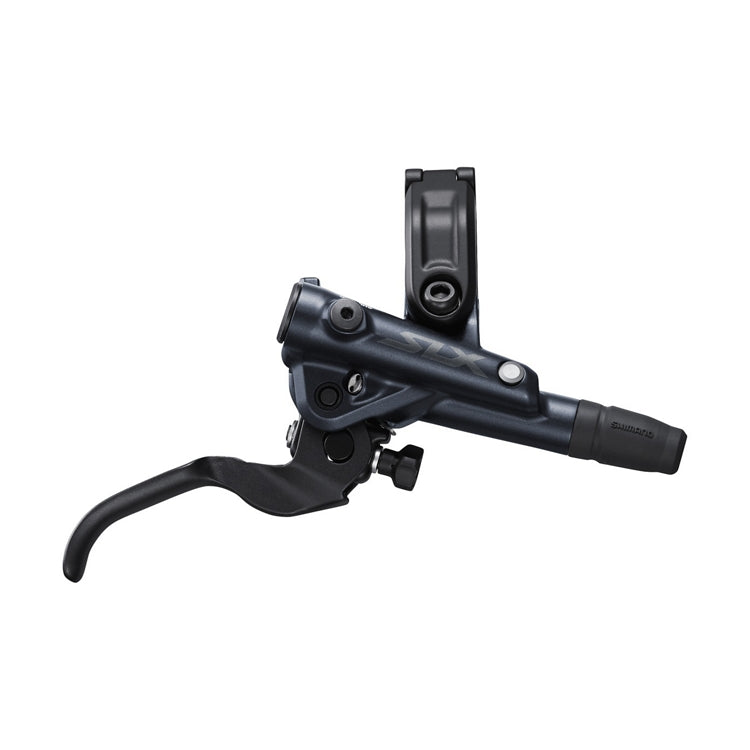

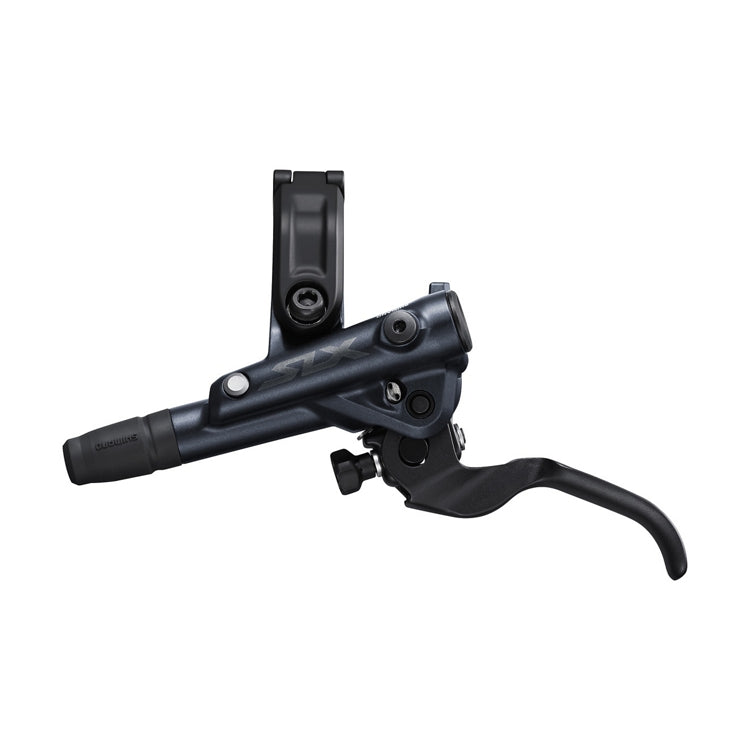

PRODUCT SPECIFICATIONS - LEVER
| MODEL NO | BL-M7100 |
|---|---|
| SERIES | SLX M7100 Series |
| Color | Series color |
| Average weight | 425 g (BR-M7100), 444 g (BR-M7120) |
| Brake hose (Kit) | SM-BH90-SBM |
|---|---|
| Brake Type | Hydraulic disc brake |
| Clamp band_Open clamp band | ✔ |
| Compatible shifting lever mount_I-SPEC EV | ✔ |
| Compatible Shifting Lever Mount | Clamp band, I-SPEC EV |
| Funnel bleeding | ✔ |
| Hose joint | Straight |
| J-kit option available | ✔ |
| Lever size (Finger) | 2 |
| Oil | SHIMANO Mineral |
| Reach adjust_Toolless | ✔ |
| Reach Adjust Type | Toolless |
| Recommended brake caliper | BR-M7100, BR-M7120 |
| Servo wave mechanism | ✔ |
| Compatible shifting lever mount_Clamp band | ✔ |
PRODUCT SPECIFICATIONS - CALIPER
| MODEL NO | BR-M7120 |
|---|---|
| SERIES | SLX M7100 Series |
| Color | Series color |
| Average weight | 444 g |
| Brake hose color (kit) | Black |
|---|---|
| Brake hose (kit) | SM-BH90-SBM |
| Brake Type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Snap ring |
| Caliper fixing bolt_Tool size | 5 mm |
| Hose joint | Banjo |
| J-Kit spec (for OEM) | ✔ |
| Mount type(available for IS mount with mount adapter) | Post-type |
| Oil | SHIMANO Mineral |
| Pad_Option | D02S Metal (w/o fin), N04C Metal (w/ fin) |
| Pad_Standard | D03S Resin (w/o fin), N03A Resin (w/ fin) |
| Pad mount | Pad axle |
| Piston | 4 |
| Recommended brake lever | BL-M7100 |
| Recommended brake rotor | SM-RT70 |
| Ice technology pad compatible caliper | ✔ |
