Shimano Saint M820 Hydraulic Disc Brake - 4 Piston (Front & Rear)

Pads :
Terms & conditions

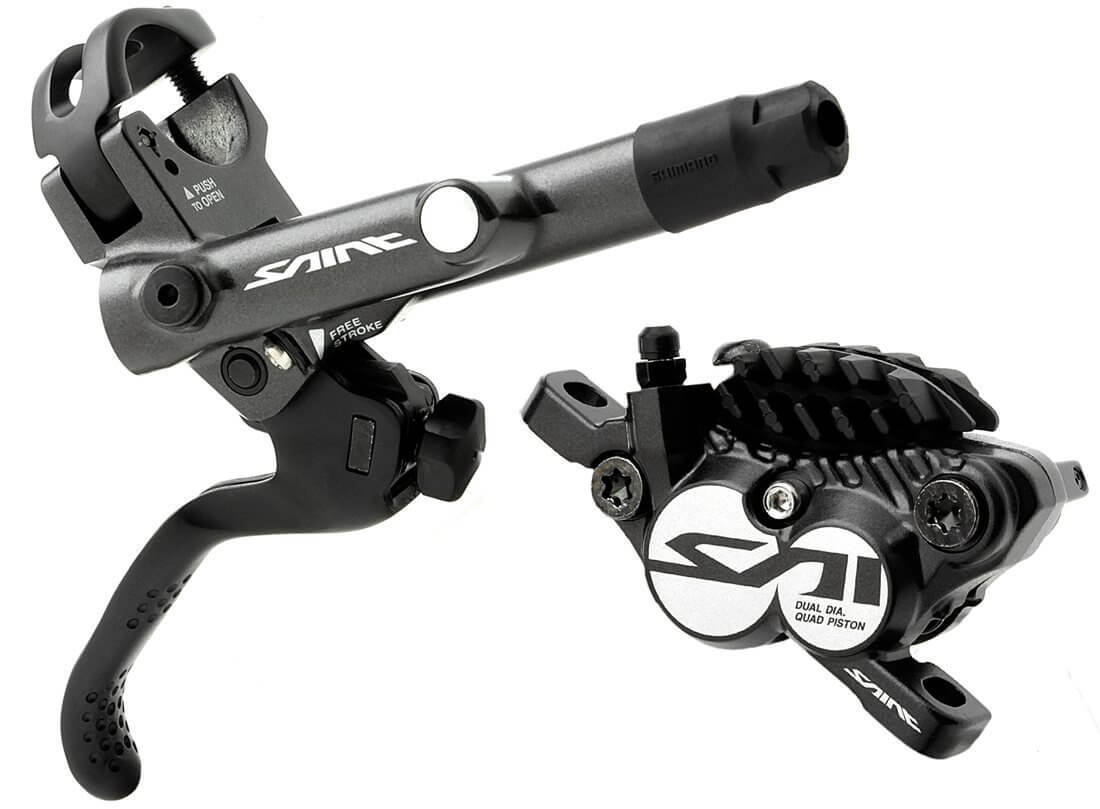

Shimano Saint M820 Saint Hydraulic Disc Brake - 4 Piston (Front & Rear)

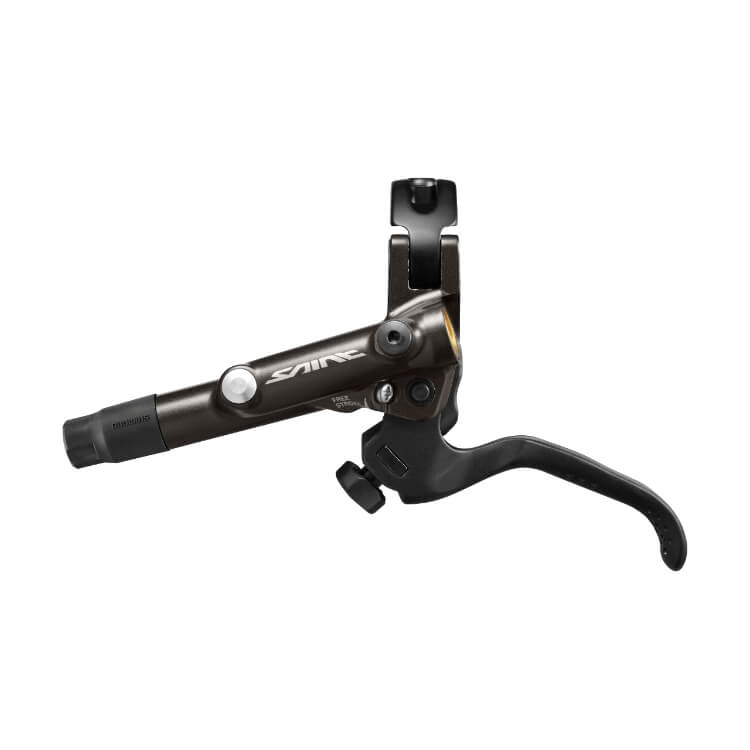

SHIMANO SAINT- Hydraulic Disc Brake Lever - I-SPEC B Clamp Band - SERVO WAVE Action

The world's best gravity riders rely on SHIMANO SAINT brakes to deliver ultimate stopping power and nuanced modulation no matter the conditions. For sure braking in the roughest terrain, the BL-M820 levers are textured and feature tool-free reach adjust, Free Stroke adjustment, and I-spec B compatibility.

  • Ergonomic antiskid lever
  • Lighter short Servo Wave lever
  • Free Stroke & tool less Reach Adjust
  • I-spec compatible
  • Weight: 103.2g

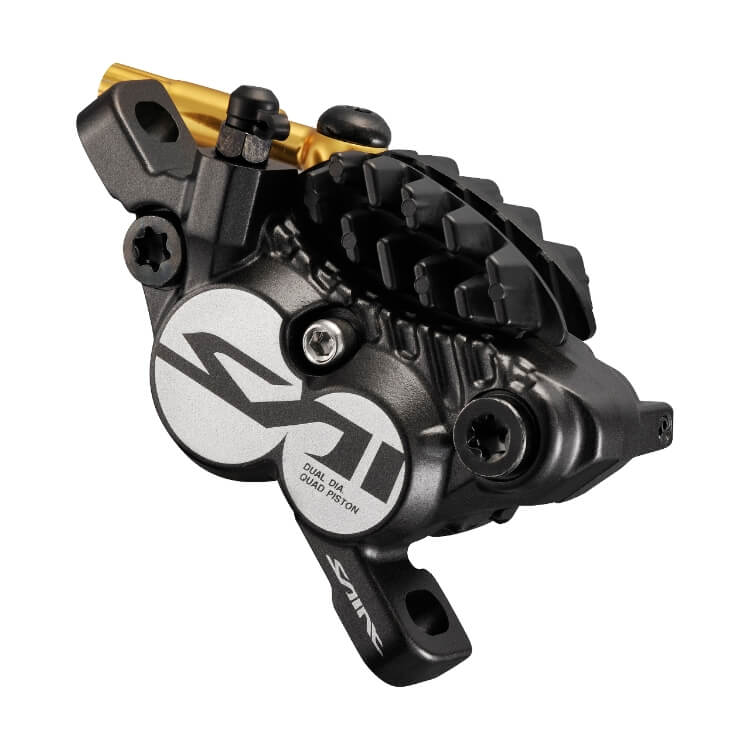

SAINT - ICE TECHNOLOGIES - 4-Piston - Hydraulic Disc Brake Caliper

The ultimate gravity and downhill brake, the SAINT hydraulic disc brake features a rigid caliper, 4-ceramic pistons, and integrated ICE TECHNOLOGIES heat management.

  • ICE TECHNOLOGIES heat management
  • High power 4-ceramic piston caliper
  • Easy and clean bleeding
  • One Way Bleeding caliper
  • Funnel bleeding tool
  • Pad: H01A Resin/H03C Metal
  • Weight: 306g (Resin pad with radiator fin)


Color Series color
Average weight 103.2 g**
Remarks * I-SPEC B-type. ** Single item weight
Brake hose (Kit) SM-BH90-SBLS
Brake hose color (Kit) Black | White
Brake Type Hydraulic disc brake
Clamp band_Open clamp band
Free stroke adjust
Funnel bleeding
Hose joint Straight
J-kit option available
Lever size (Finger) 2
Oil SHIMANO Mineral
Reach adjust_Toolless
Recommended brake caliper BR-M820
Servo wave mechanism
Compatible shifting lever mount_Clamp band
Compatible shifting lever mount_I-SPEC B X*



Color Series color
Average weight 306 g** (w/ radiator fin)
Remarks ** Single item weight
Brake hose color (kit) Black | White
Brake hose (kit) SM-BH90-SBLS
Brake Type Hydraulic disc brake
Caliper fixing bolt_Anti loosen method Snap ring
Caliper fixing bolt_Tool size 5 mm
Hose joint Banjo
J-Kit spec (for OEM)
Mount type(available for IS mount with mount adapter) Post-type
Oil SHIMANO Mineral
One way bleeding
Pad_Standard H01A Resin, H03A Resin | H03C Metal
Pad mount Pad axle
Piston 4
Recommended brake lever BL-M820
Recommended brake rotor SM-RT99, SM-RT86
Ice technology pad compatible caliper
