Name: Shimano Deore XT FC-M8200 Crankset - Di2 Series
Brand: Shimano
SKU: 50170157400311
Price: 205.0 SGD
Availability: InStock

Description
Shipping & Return

Description

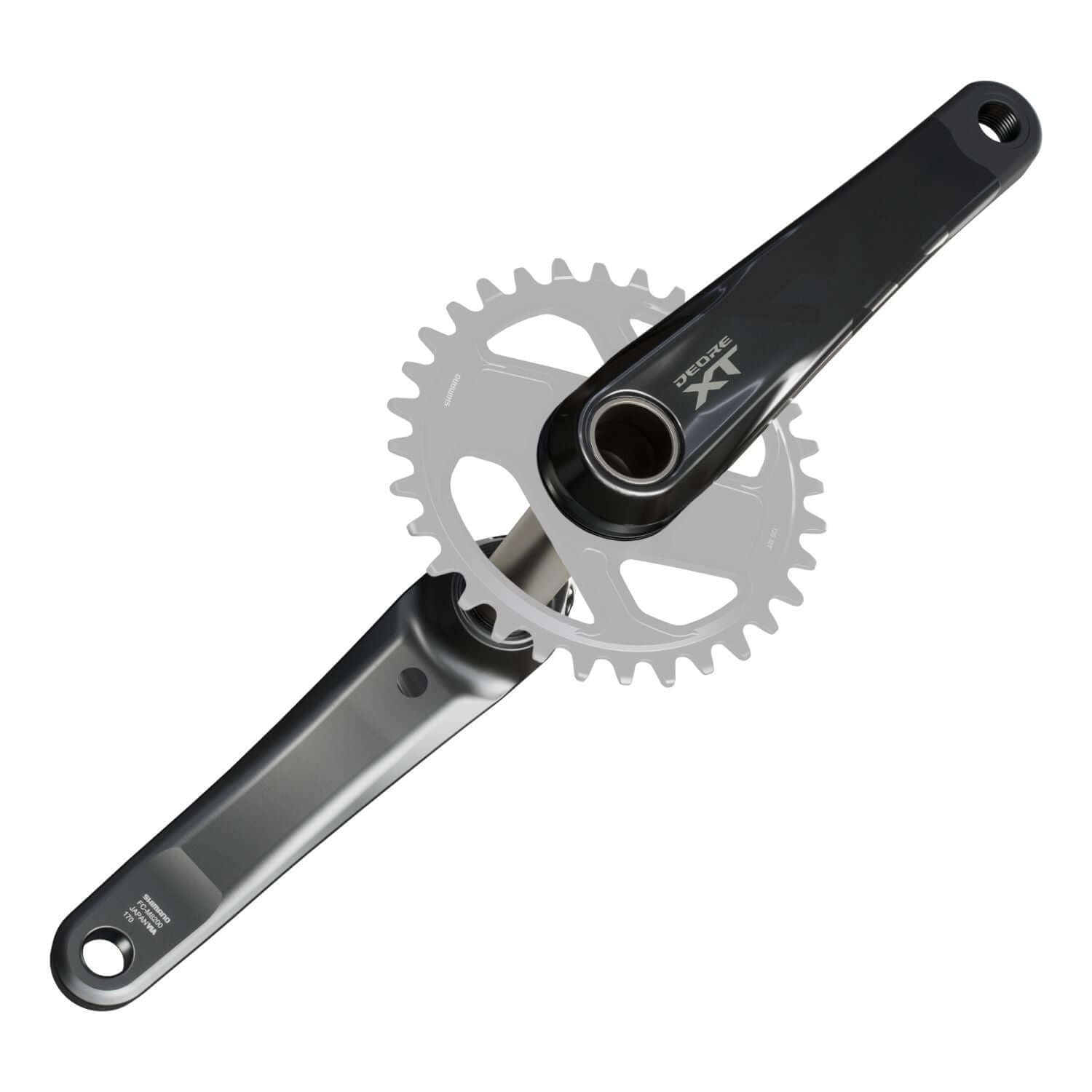

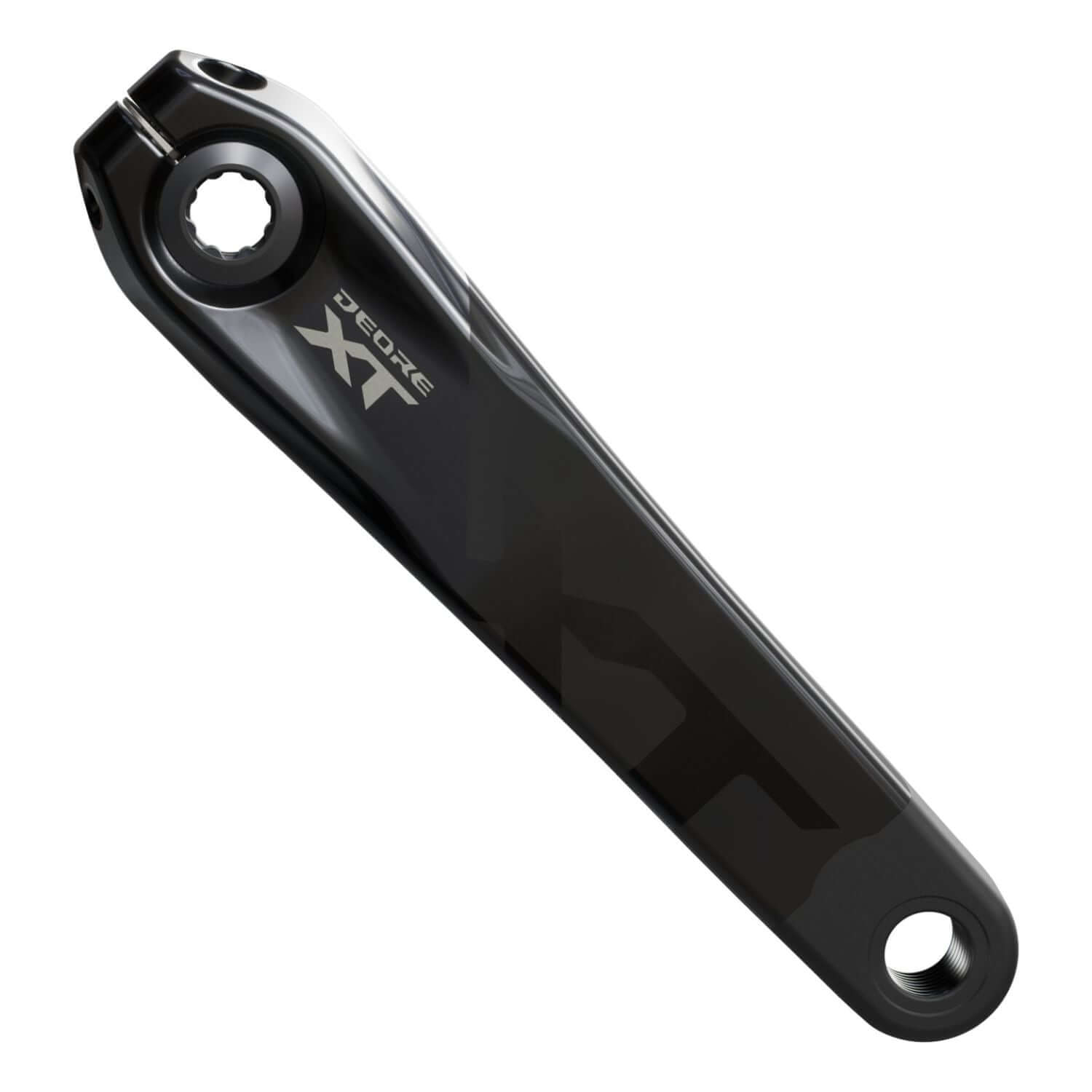

DEORE XT CRANKSET 176 MM Q-FACTOR 55 MM CHAIN LINE 12s - FC-M8200

The FC-M8200 DEORE XT crankset perfectly balances rigidity and weight, using HOLLOWTECH II alloy forging and a standard 24 mm steel spindle to create a crankset that's strong enough to survive burly impacts, while remaining light enough for XC use. Offered in lengths from 160 - 175 mm and with all sizes of the reinforced SM-CR86 direct-mount chainring, there is a specification of FC-M8200 for every trail rider.

FEATURE

Enduro Durability: Perfected HOLLOWTECH II forging provides optimal weight, stiffness, and rigidity for both all-day trail riding and enduro racing.

FEATURE

Q Factor/Chain line: An optimized 176 mm Q Factor brings race-feel familiarity, while a unified 55 mm chain line offers maxed-out frame compatibility-no wheel or cassette changes required.

FEATURE

Compatibility: M8200 cranks come standard with a 24 mm spindle and are compatible with SHIMANO's threaded and press-fit bottom brackets.

Model No	FC-M8200
Series	DEORE XT
Rear speeds	12
Compatible chain	HG 12-speed
Chain line (mm)	55
O.L.D.	148
Thru (mm)
P.C.D. (mm)	Direct
Chainring combination	28T, 30T, 32T, 34T, 36T
Q-factor (mm)	176
	160
	165
Crank arm length (mm)	170
	175
Optional chain guard	Without chain/bash guard
HOLLOWTECH II
Compatible bottom bracket type	Outboard
Recommended bottom bracket	Threaded (normal)
	Press-Fit
Threaded bottom bracket shell width (mm)	68
	73
Crank fixing screw included
