Brakesets are sold as a pair


BR-M8120

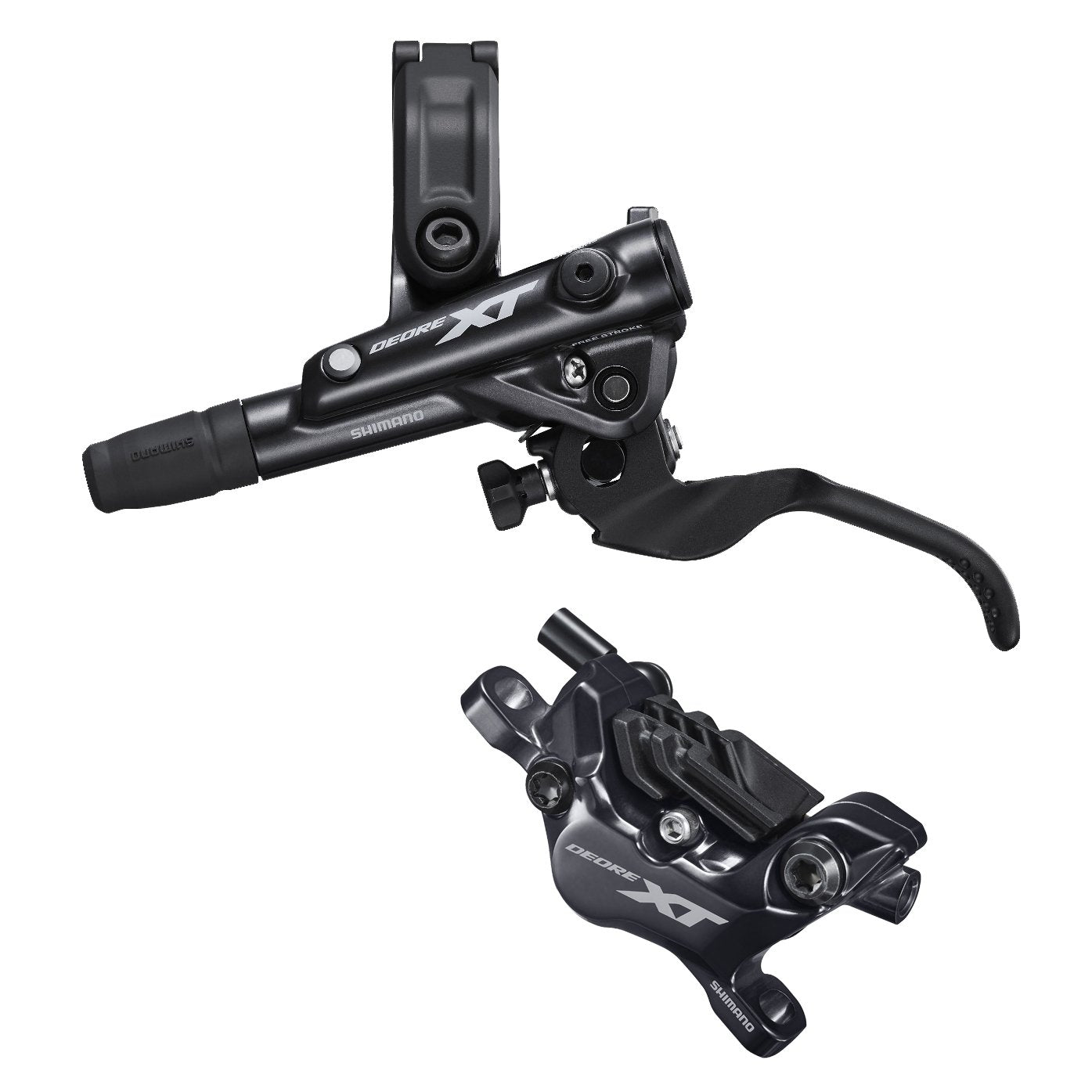

SHIMANO DEORE XT - 4-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper

The SHIMANO DEORE XT M8120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.

  • FEATURE
    • Quicker Piston retraction
    • Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M8000)
    • Four Piston
    • Banjo type connection and inside hose routing
    BENEFIT
    • Superior modulation gives you greater control
    • High braking power instills greater downhill confidence and control
    • Quick and easy assembly

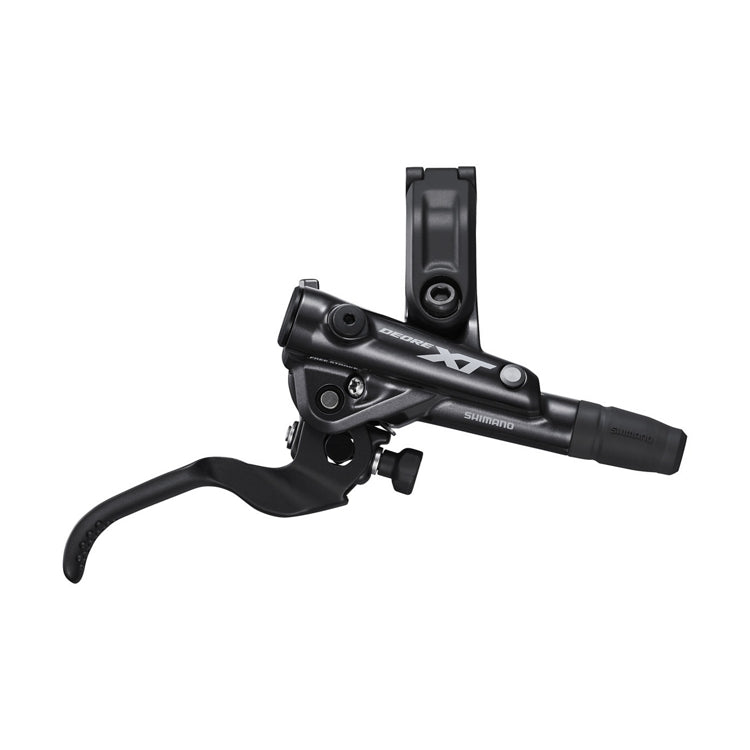

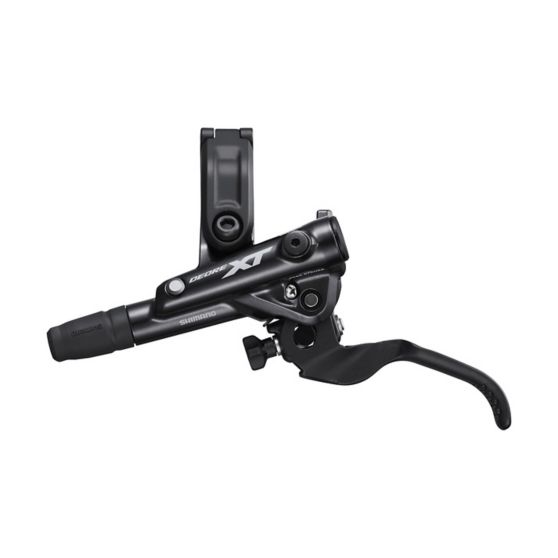

PRODUCT SPECIFICATIONS - LEVER

MODEL NO BL-M8100
SERIES SHIMANO DEORE XT M8100 Series
Color Series color
Average weight 392 g (BR-M8100), 410 g (BR-M8120)
Brake hose (Kit) SM-BH90-SBM
Brake Type Hydraulic disc brake
Clamp band_Open clamp band
Compatible shifting lever mount_I-SPEC EV
Compatible Shifting Lever Mount Clamp band, I-SPEC EV
Free stroke adjust
Funnel bleeding
Hose joint Straight
J-kit option available
Lever size (Finger) 2
Oil SHIMANO Mineral
Reach adjust_Toolless
Reach Adjust Type Toolless
Recommended brake caliper BR-M8100, BR-M8120
Servo wave mechanism
Compatible shifting lever mount_Clamp band
MODEL NO BR-M8100
SERIES SHIMANO DEORE XT M8100 Series
Color Series color
Average weight 392 g

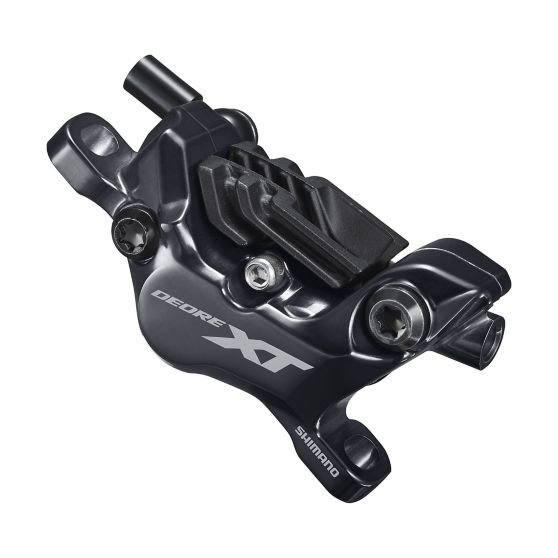

PRODUCT SPECIFICATIONS - CALIPER

MODEL NO BR-M8120
SERIES SHIMANO DEORE XT M8100 Series
Color Series color
Average weight 410 g
Brake hose color (kit) Black
Brake hose (kit) SM-BH90-SBM
Brake Type Hydraulic disc brake
Caliper fixing bolt_Anti loosen method Snap ring
Caliper fixing bolt_Tool size 5 mm
Hose joint Banjo
J-Kit spec (for OEM)
Mount type(available for IS mount with mount adapter) Post-type
Oil SHIMANO Mineral
Pad_Option D03S Resin (w/o fin), D02S Metal (w/o fin)
Pad_Standard N03A Resin (w/ fin), N04C Metal (w/ fin)
Pad mount Pad axle
Piston 4
Recommended brake lever BL-M8100
Recommended brake rotor RT-MT800
Ice technology pad compatible caliper
