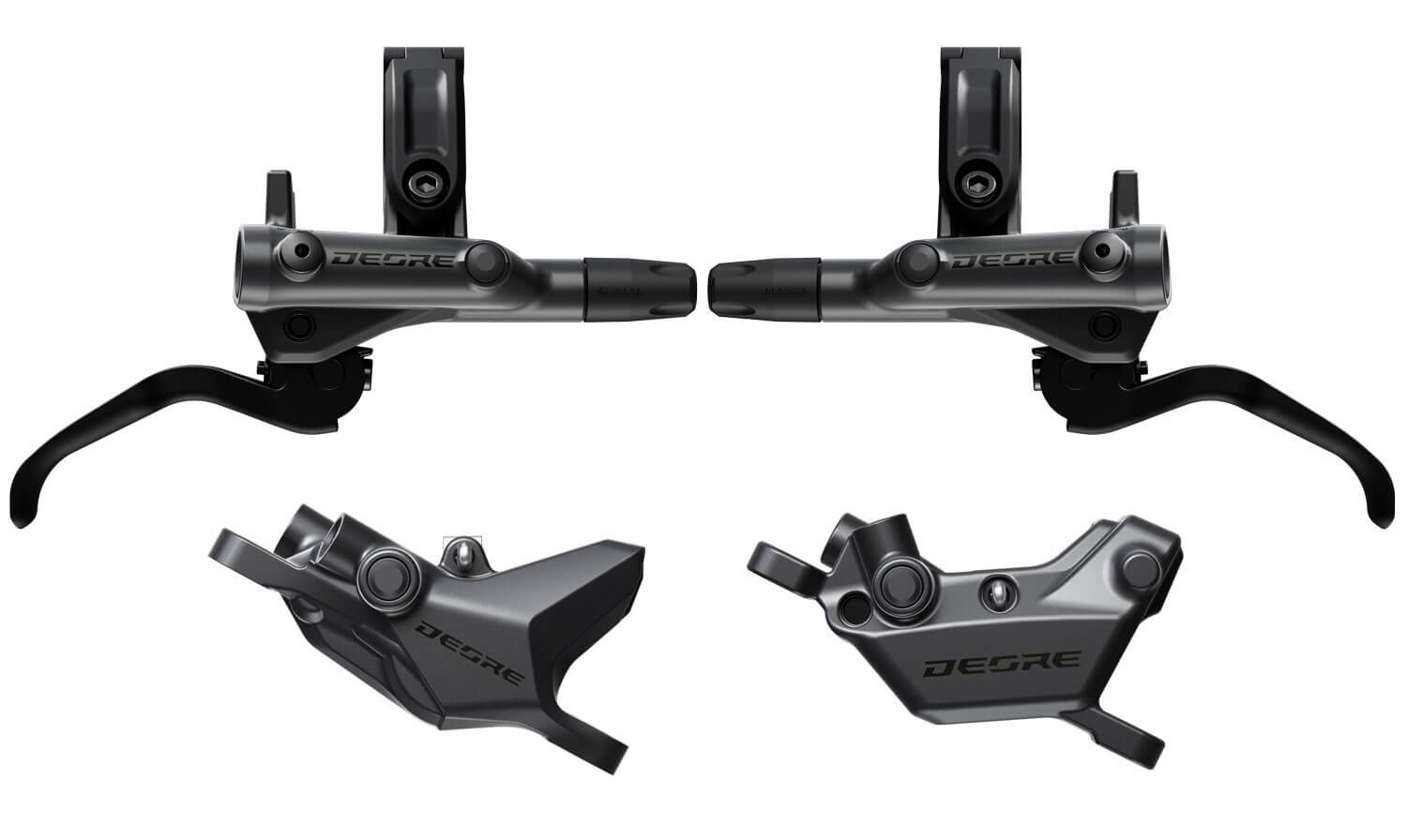

Name: Shimano Deore M6220 Deore Hydraulic Disc Brake - 4 Piston (Front & Rear)
Brand: Shimano
SKU: 51057602330871
Price: 340.0 SGD
Availability: InStock

Description
Shipping & Return

Description

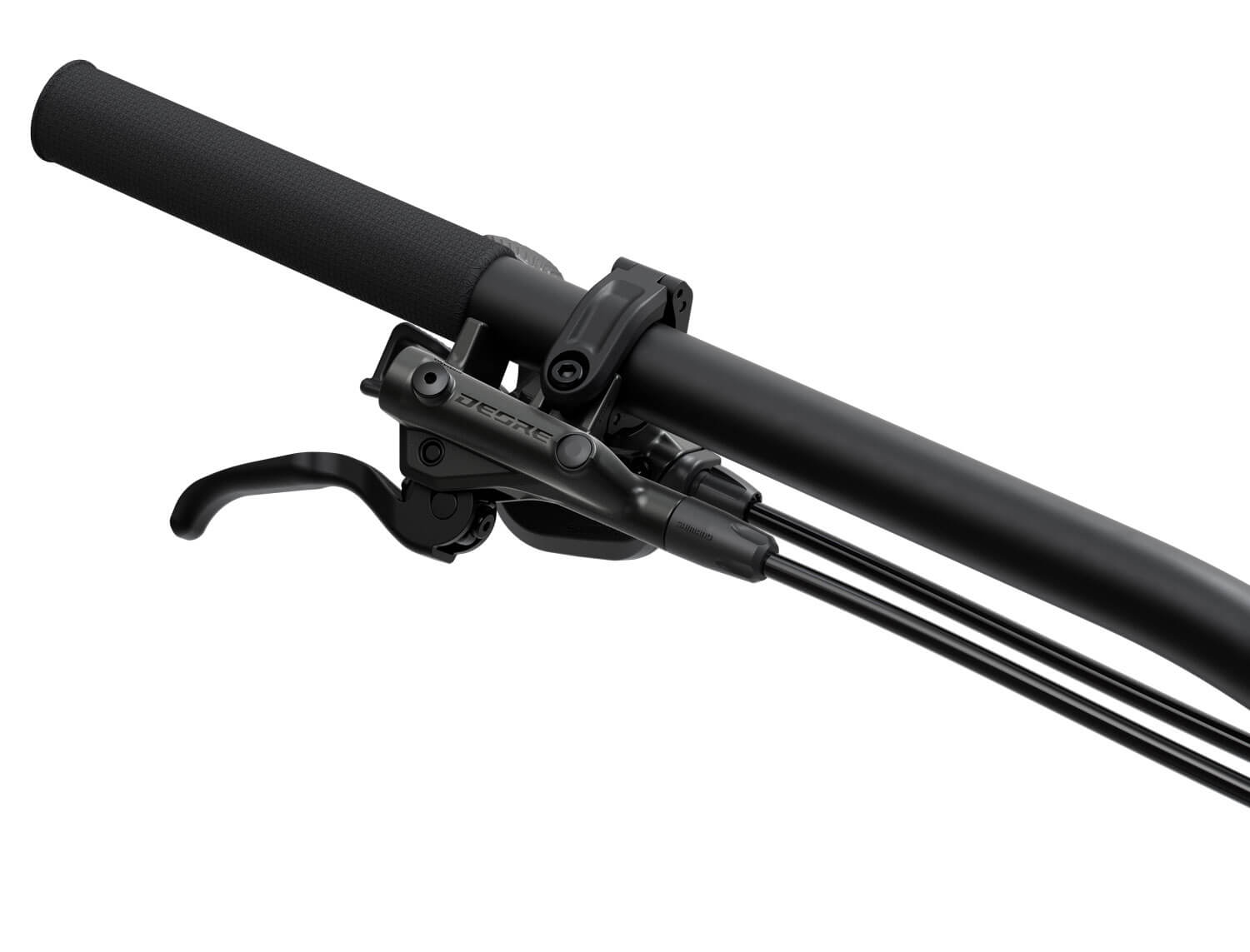

DEORE BRAKE LEVER

BL-M6200

When you need reliably consistent braking action and a streamlined, clean appearance without shelling out big cash, the DEORE M6200 brake lever delivers. SERVO WAVE serves up quick pad contact and an optimized power curve, and the new low-viscosity oil helps braking remain stable over a wide range of temperatures. It's also I-SPEC EV compatible for full on-bar system integration.

FEATURE

SERVO WAVE: Greater power with improved control through rapid pad travel from the first pull.

FEATURE

Low Viscosity Oil: Braking remains stable over a wide range of temperatures.

FEATURE

Clean Aesthetic: The hose runs parallel to the bar, along with I-SPEC EV compatibility for added handlebar adjustability.

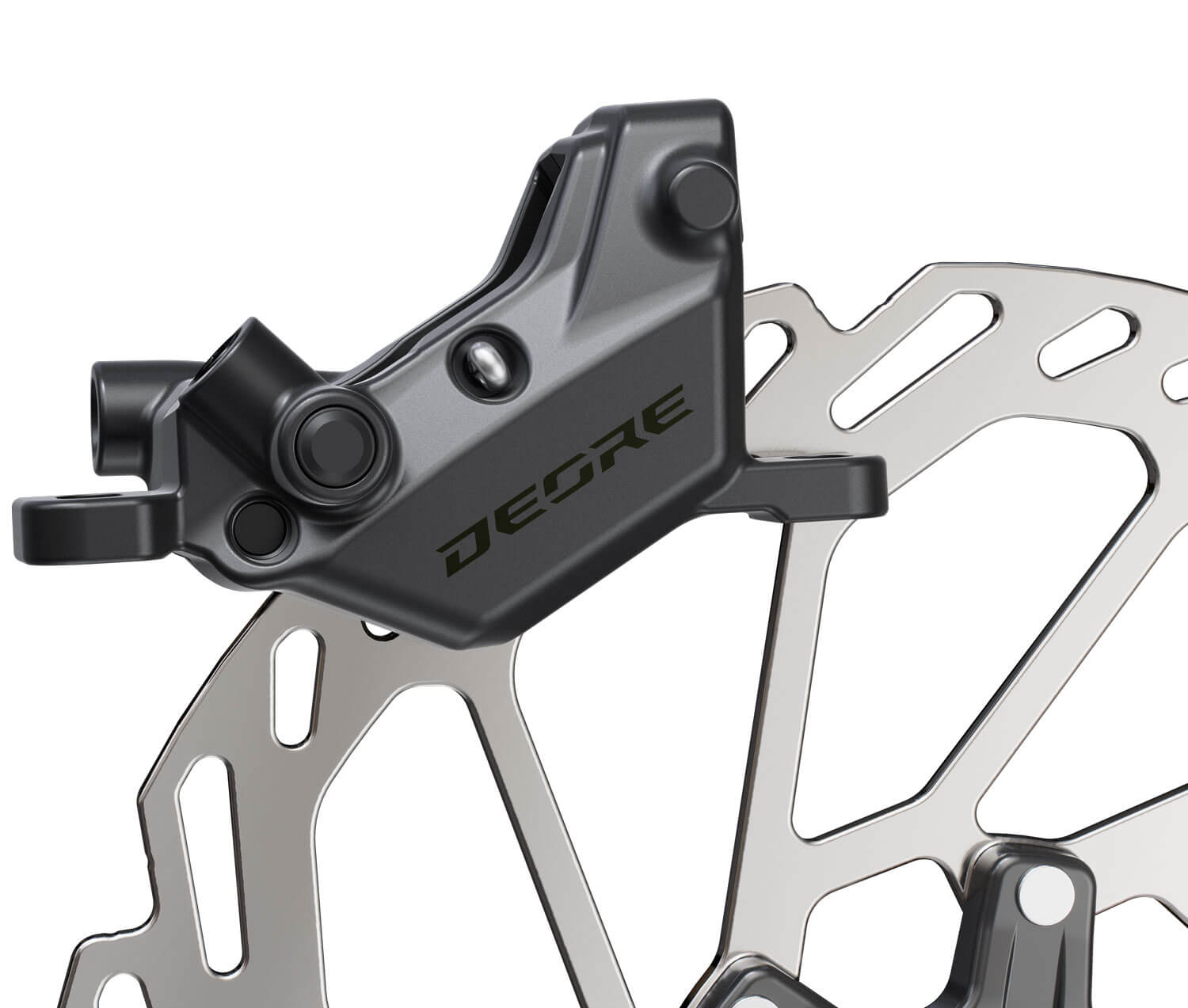

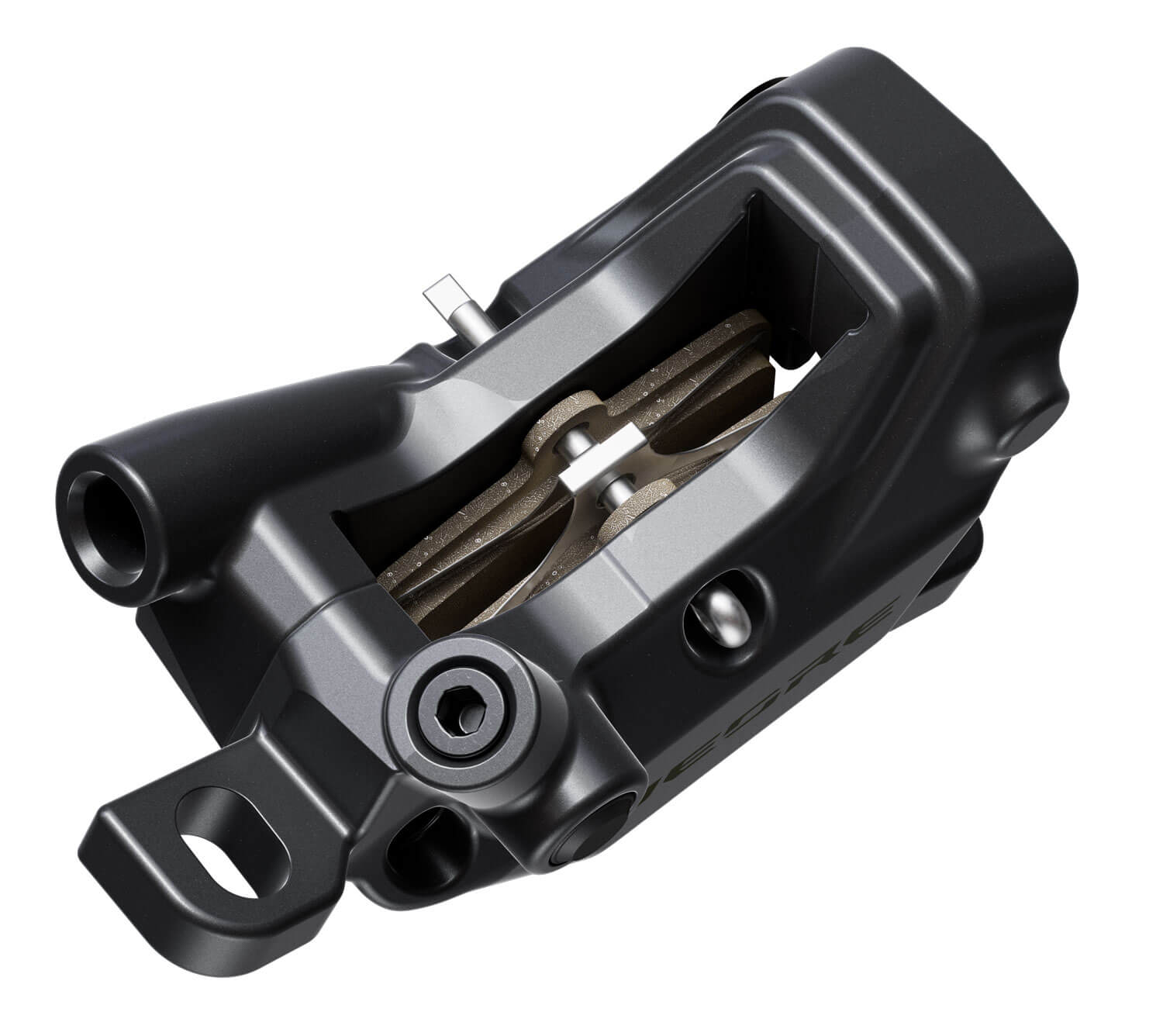

DEORE 4-PISTON BRAKE CALIPER

BR-M6220

The DEORE M6220 hydraulic four-piston disc brake calipers bring consistent and full-power braking to the line. The calipers are built around a rigid two-piece design and offer better bike control through their new low-viscosity oil, new piston seal and new heat-resistant resin piston, allowing the braking system to stay stable over a wide range of temperatures. The calipers are compatible with non-finned metal or resin pads and both regular and thicker 2.2 mm rotors.

FEATURE

Two-Piece Construction: Rigid, durable design.

FEATURE

Four-Piston: Dual-diameter 4-piston design, offering high power and control.

FEATURE

Temperature Stability: New low-viscosity oil, new piston seal and new heat-resistant resin piston result in stability over a wider range of temperatures.

FEATURE

Pad Compatibility: Works seamlessly with non-finned metal or resin pads.

DEORE BRAKE LEVER

Feature	Sub-feature	Value
Model No		BL-M6200
Series		DEORE
Brake type		Hydraulic disc brake
Lever size (finger)		2
Brake hose (kit)		SM-BH90-SS
Hose joint		Straight
Brake hose color (kit)	1	Black
J-Kit spec (for OEM)		✓
SERVO WAVE		✓
Reach adjust	Tool	✓
Compatible shifter mount	Clamp band	✓
	I-SPEC EV	✓
Clamp band	Open clamp	✓
Recommended brake caliper		BR-M6200 BR-M6220
Oil		SHIMANO LOW VISCOSITY OIL
Funnel bleeding		✓

DEORE 4-PISTON BRAKE CALIPER

Model No		BR-M6220
Series		DEORE
Brake type		Hydraulic disc brake
Brake hose (kit)		SM-BH90-SS
Hose joint		Straight
Brake hose color (kit)	1	Black
J-Kit spec (for OEM)		✓
Pad	Standard 1	D03S-RX Resin (w/o fin)
	Standard 2	D02S-MX Metal (w/o fin)
Recommended brake lever		BL-M6200
Recommended disc brake rotor		SM-RT64, SM-RT66, RT-CL750, RT-68750
Compatible rotor size	160 mm (S)	✓
	180 mm (M)	✓
	203 mm (L)	✓
	220 mm (LL)	✓
Oil		SHIMANO LOW VISCOSITY OIL
ONE WAY BLEEDING		✓
Mount type		Post mount
Piston		4
Caliper fixing screw	Tool size	5 mm
	Anti loosen method	Snap ring
Pad mount		Split pin (stainless steel)
