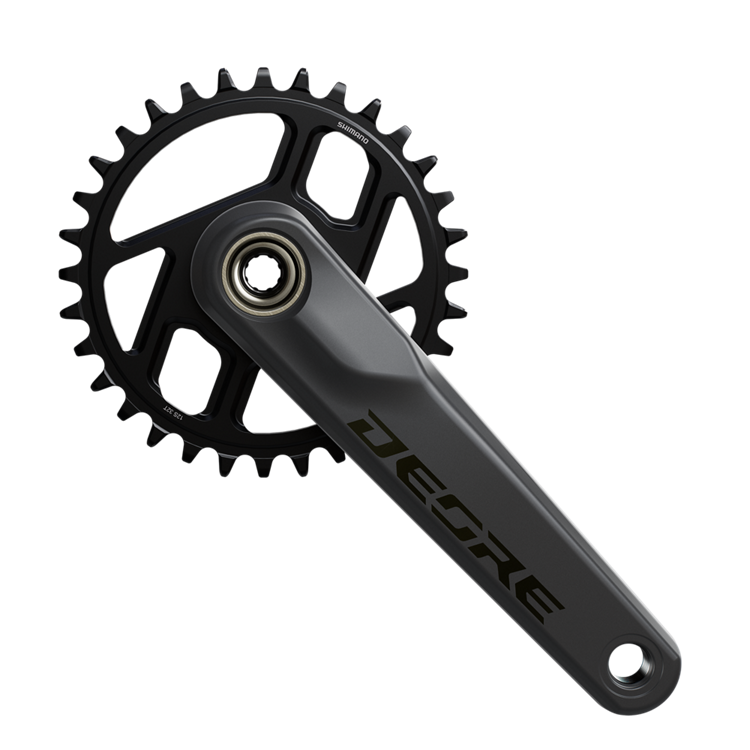

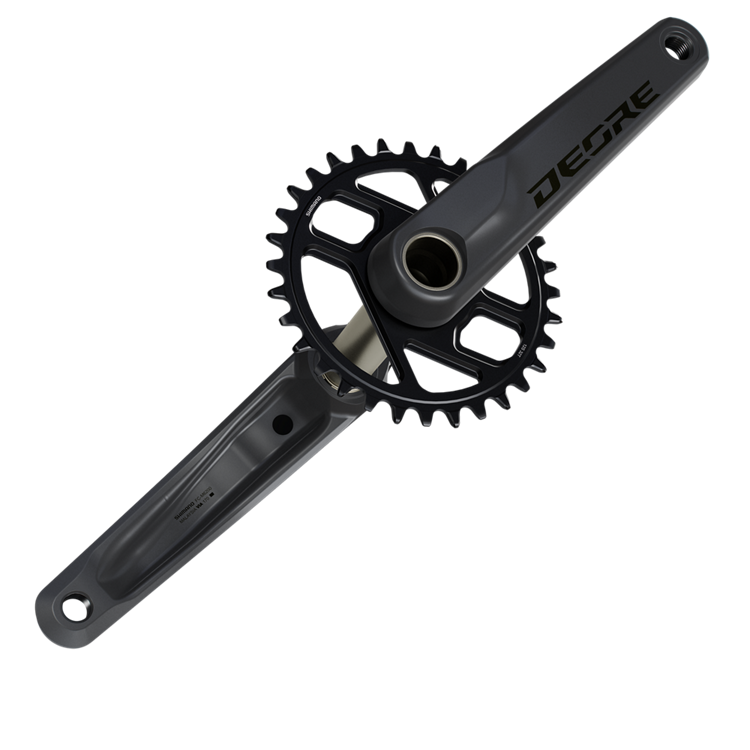

The two-piece M6200 Trail/Enduro crankset is built around rigidity, durability and quality, delivering a responsive crankset that keeps you rolling consistently, optimized for the balance of strength and weight following the XTR/XT design. The alloy crankset features a steel chainring for added strength, while the DYNAMIC CHAIN ENGAGEMENT+ technology eliminates worry around dropped chains.
FEATURE
DYNAMIC CHAIN ENGAGEMENT+: Optimized narrow-wide chainring tooth profile for better chain retention and smoother shifting.
FEATURE
Two-Piece Construction: A rigid and durable alloy crankset spinning on a 24 mm steel axle.
FEATURE
Standard Direct Mount: Durable steel chainring.
| Feature | Specification 1 | Specification 2 |
|---|---|---|
| Model No | FC-M6200 | |
| Series | DEORE | |
| Rear speeds | 12 | |
| Compatible chain | HG 12-speed | |
| Chain line (mm) | 55 | |
| O.L.D. | Thru (mm) | 148 |
| P.C.D. (mm) | Direct | |
| Spider/gear arms | TBD | |
| Chainring combination | 30T, 32T | |
| Q-factor (mm) | 176 | |
| Crank arm length (mm) | 165 | ✓ |
| Crank arm length (mm) | 170 | ✓ |
| Crank arm length (mm) | 175 | ✓ |
| Optional chain guard | Without chain/bash guard | ✓ |
| 2-PIECE CRANKSET | ✓ | |
| Compatible bottom bracket type | Outboard | ✓ |
| Recommended bottom bracket | Threaded (normal) | BB-MT501 |
| Recommended bottom bracket | Press-Fit | BB-MT500-PA |
| Threaded bottom bracket shell width (mm) | 68 | ✓ |
| Threaded bottom bracket shell width (mm) | 73 | ✓ |
| Crank fixing screw included | ✓ |
