Shimano Deore FC-M6100 Crankset

Length :
Chainring :
Terms & conditions

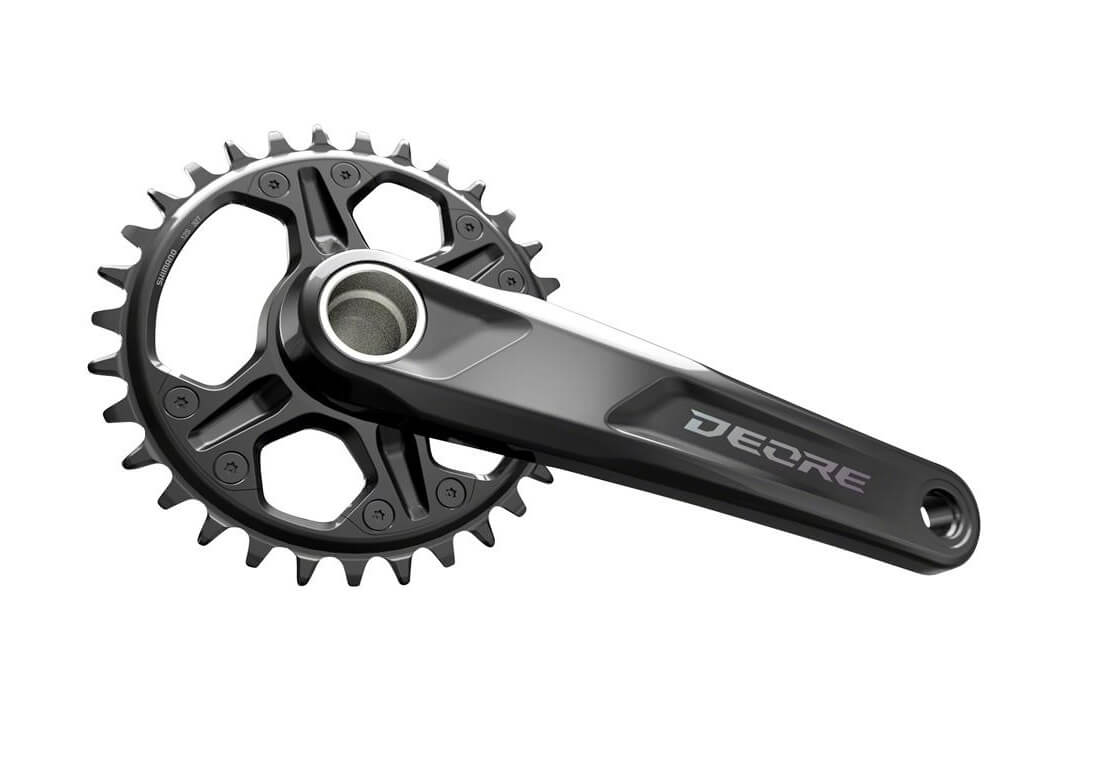

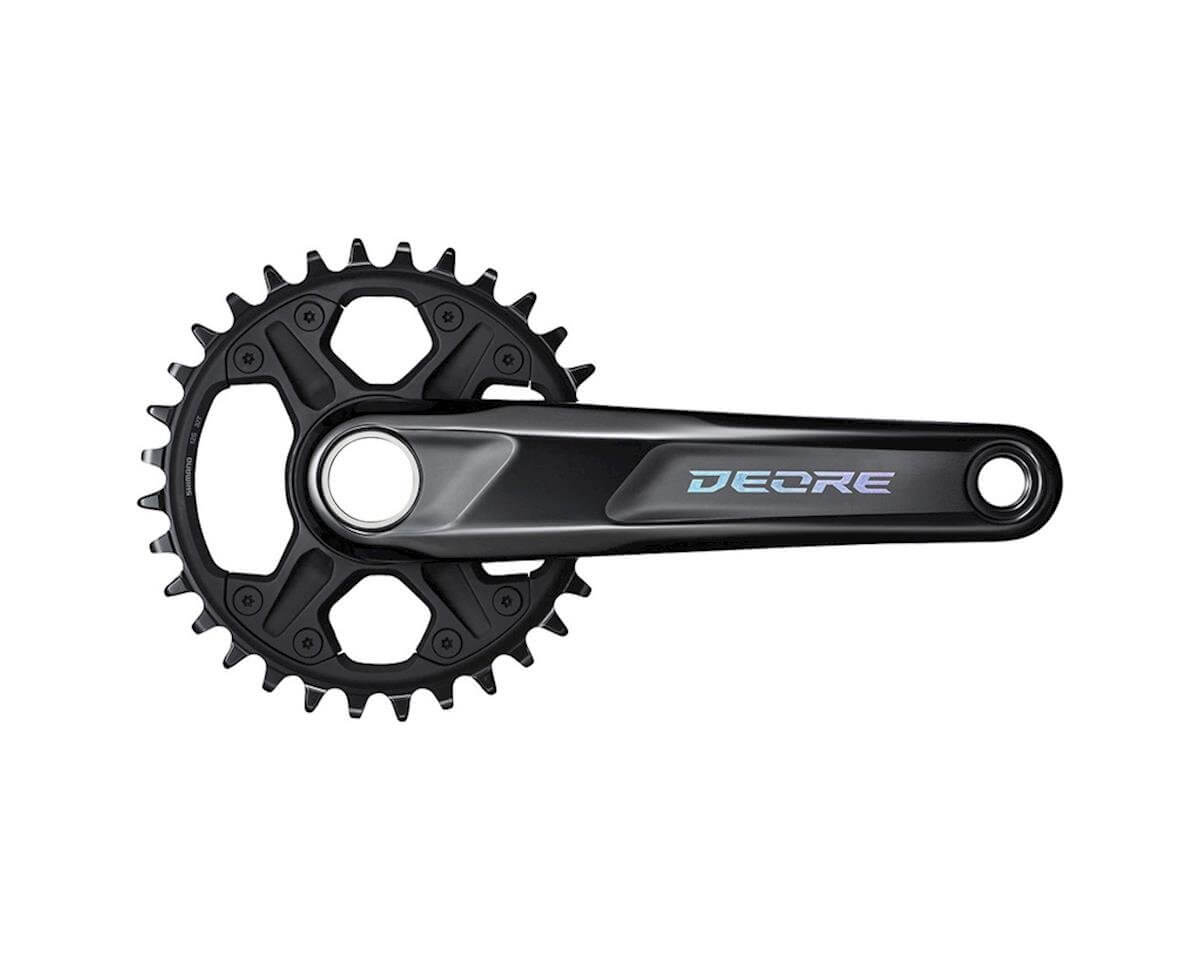

Shimano Deore FC-M6100 Crankset


SHIMANO DEORE - MTB Crankset - 2-PIECE CRANKSET - 172 mm Q-factor - Chain Line 52 mm - 1x12-speed

The SHIMANO DEORE FC-M6100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172 mm Q-factor that is compatible with 142 mm or 148 mm O.L.D. frames.

  • Superior chain retention for smoother riding even over rough terrain
  • DYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retention
  • Direct mount chainring


    MODEL NO FC-M6100-1
    SERIES DEORE M6100 Series
    Color Series Color
    2-piece crank construction
    Chain line (mm) 52
    Chain ring combination 30T, 32T
    Compatible BB type_Outboard
    Compatible chain HG+ 12-speed
    Crank fixing bolt included
    Crank arm length (mm)_170.0
    Crank arm length (mm)_175.0
    Gear arms 4 arm
    Optional chain guard_Without chain / bash guard
    P.C.D. (mm) Direct
    Rear speeds 12
    Recommended BB_Pressfit BB-MT500-PA
    Recommended BB_Threaded (normal) SM-BB52
    Threaded BB shell width_68mm
    Threaded BB shell width_73mm
    Q-factor (mm) 172
