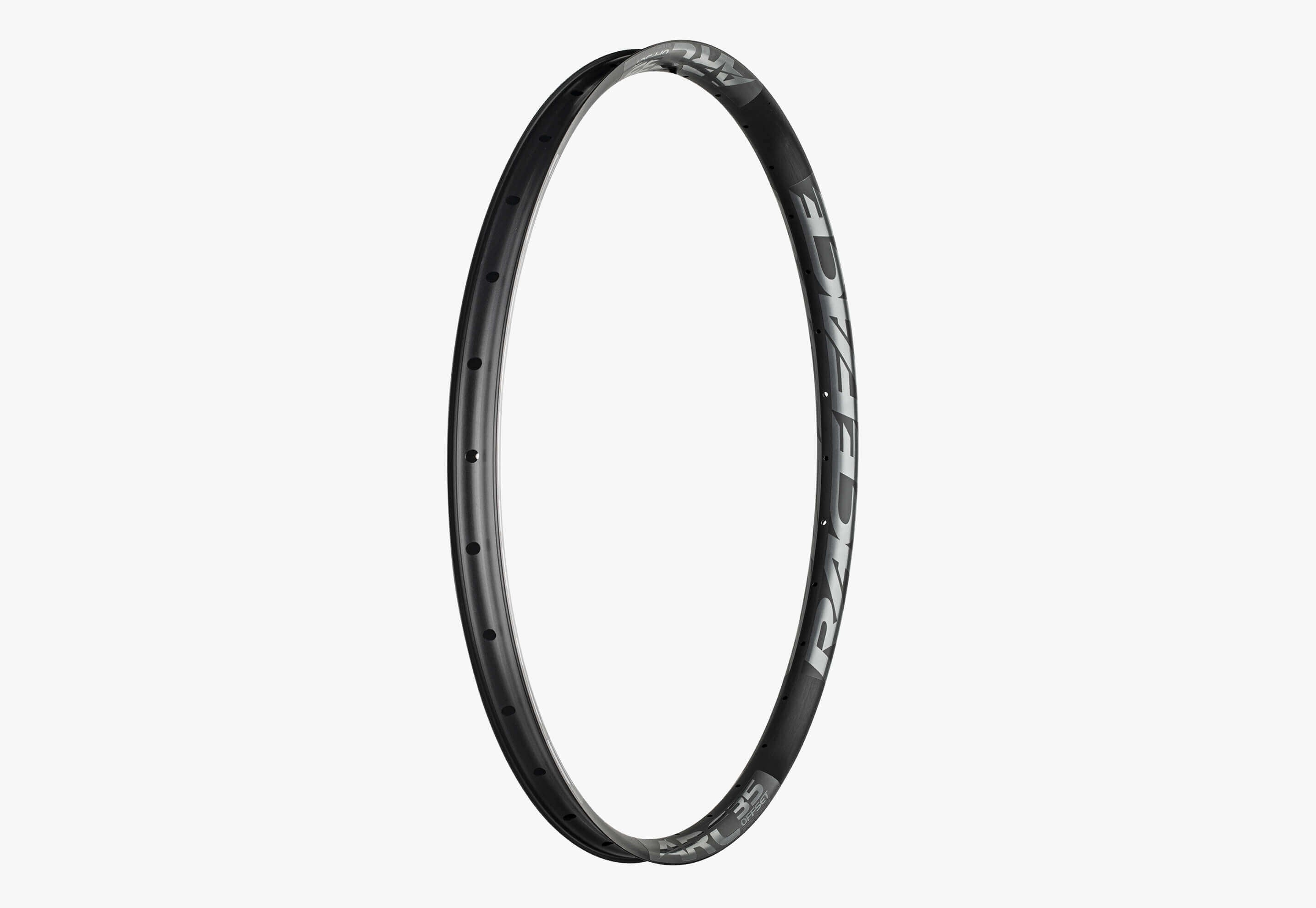

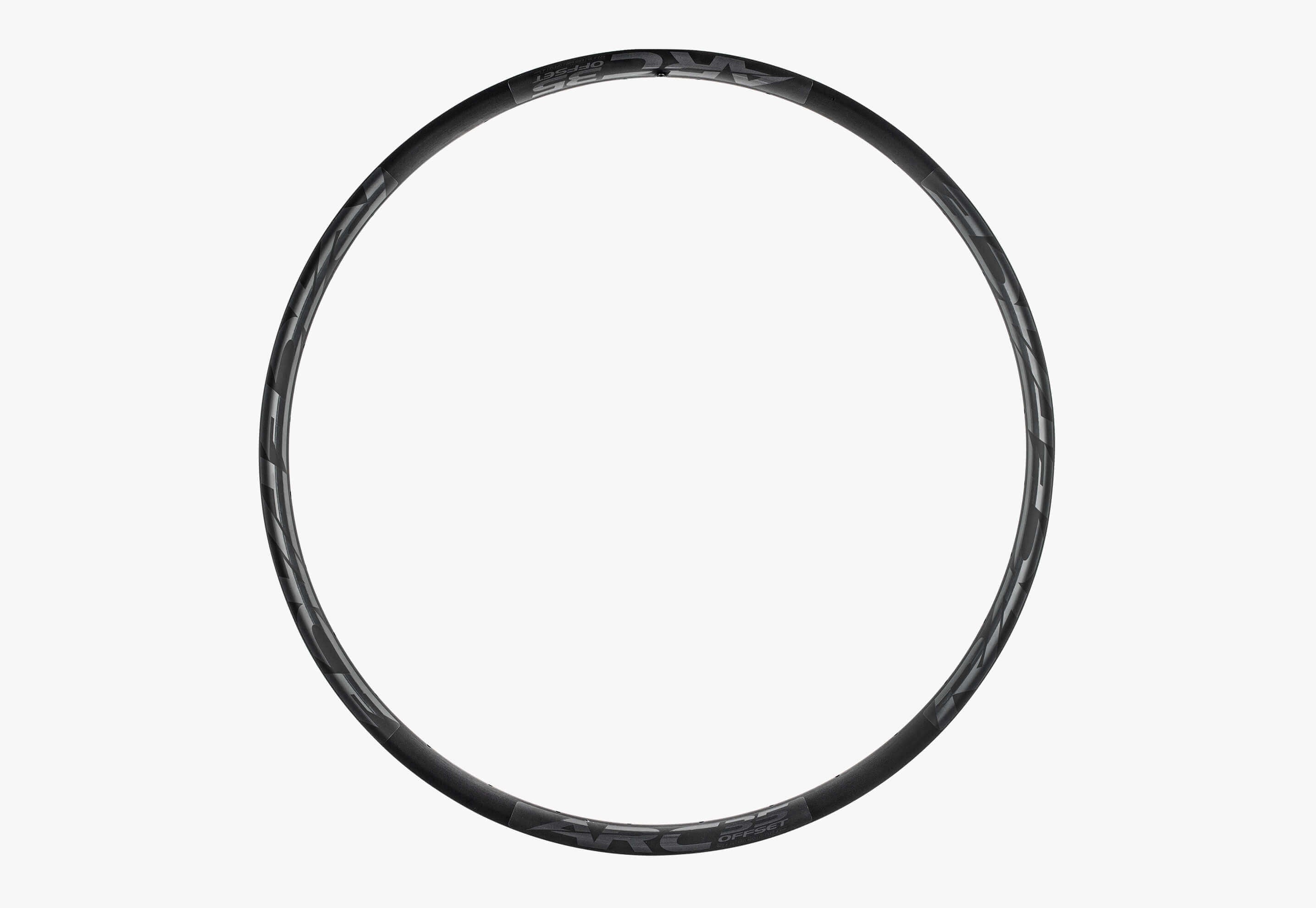

Raceface Arc Offset 35mm Rims
With a redesigned rim profile, the new ARC Offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC, significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep, we have a rim size and width option for every tire and every riding style. Our tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence. Complete your custom setup with color-matching decals available in eight color options. Decal kits sold separately.
Sizes from 25mm to 40mm internal width.
Offset nipple bed for improved spoke tension balance and wheel strength/stiffness.
Tubeless ready, strong tire retention bead.
New 30mm Heavy Duty for gravity and e-bike applications - a downhill rated rim, comparable to our World Cup proven Atlas.
SPECIFICATIONS & COLOURS
|Available Options:||27.5, 29|
|Rim:||BRUSHED BLACK ANODIZE / VINYL DECALS|
|Weight:||27.5": 25mm - 428g, 30mm - 494g, 35mm - 530g, 40mm - 570g, 30mm Heavy Duty - 565g / 29": 25mm - 450g, 30mm - 525g, 35mm - 563g, 40mm - 598g, 30mm Heavy Duty - 595g|
|Rim Dimensions:||INTERNAL RIM WIDTH 25mm, 30mm, 35mm, 40mm, 30mm Heavy Duty / EXTERNAL RIM WIDTH 28mm, 33.5mm, 38.5mm, 43.5mm, 34mm Heavy Duty / ERD: 562/600, 558/596 Heavy Duty|
