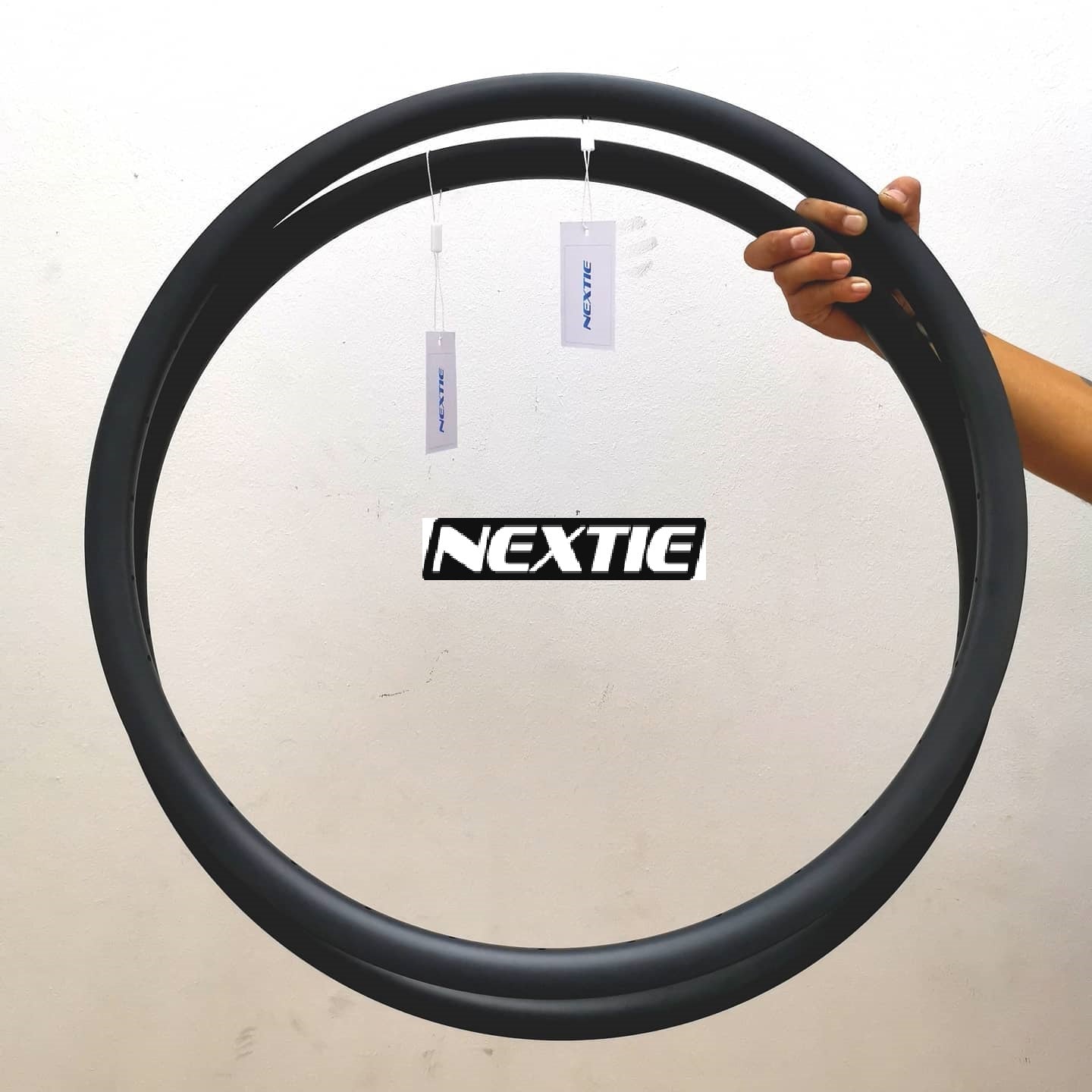

Nextie Premium Asymmetric Carbon Rims - 30mm

For all the Premium Edition rims, certainly we do improvements over traditional-tech carbon rims.

1. Materials: T800 carbon fiber added to Premium Edition rims;

2. Optimized the layup system mixing T700 & T800 carbon fibers after many times of producing, testing, producing and testing, found a best impact resistance over durability and tenacity.

3. We made a single mold to layer up the spoke bed wall. The flatness of rim channel surface significantly improved so that thickness at each spoke hole completely consistent. It effectively prevents the carbon loop of spoke hole wall from shifting;

4. Each of rim would be attached with a card showing the flatness and roundness. The flatness and roundness are controlled quite well. Flatness is controlled within  (+/-0.15mm), and oundness within +/-0.2mm, easier to tune when do wheelset assembly;

5. Three year warranty offered for Ultralight and Premium Edition rims.

Basic (XML SERIES)
Item #: NXT29XML35"/ NXT27XML35"
Material: Toray T800 + T700 Carbon Fiber
Rim Type: Clincher / Hookless
Warranty: 3 Years

Dimension (XML SERIES)
Offset: 2.6mm
Size: 29" / 27.5"
BSD: 622mm / 584mm
ERD: 589mm / 551mm
External Width: 35mm
Spoke Hole Dia.: 4.5mm
Depth: 26mm
Valve Hole Dia.: 6.5mm
Weight: 360g / 340g
Hole count: 32H

Basic (XMA SERIES)
Item #: NXT29XMA36"/ NXT27XMA36"
Material: Toray T800 + T700 Carbon Fiber
Rim Type: Clincher / Hookless
Warranty: 3 Years

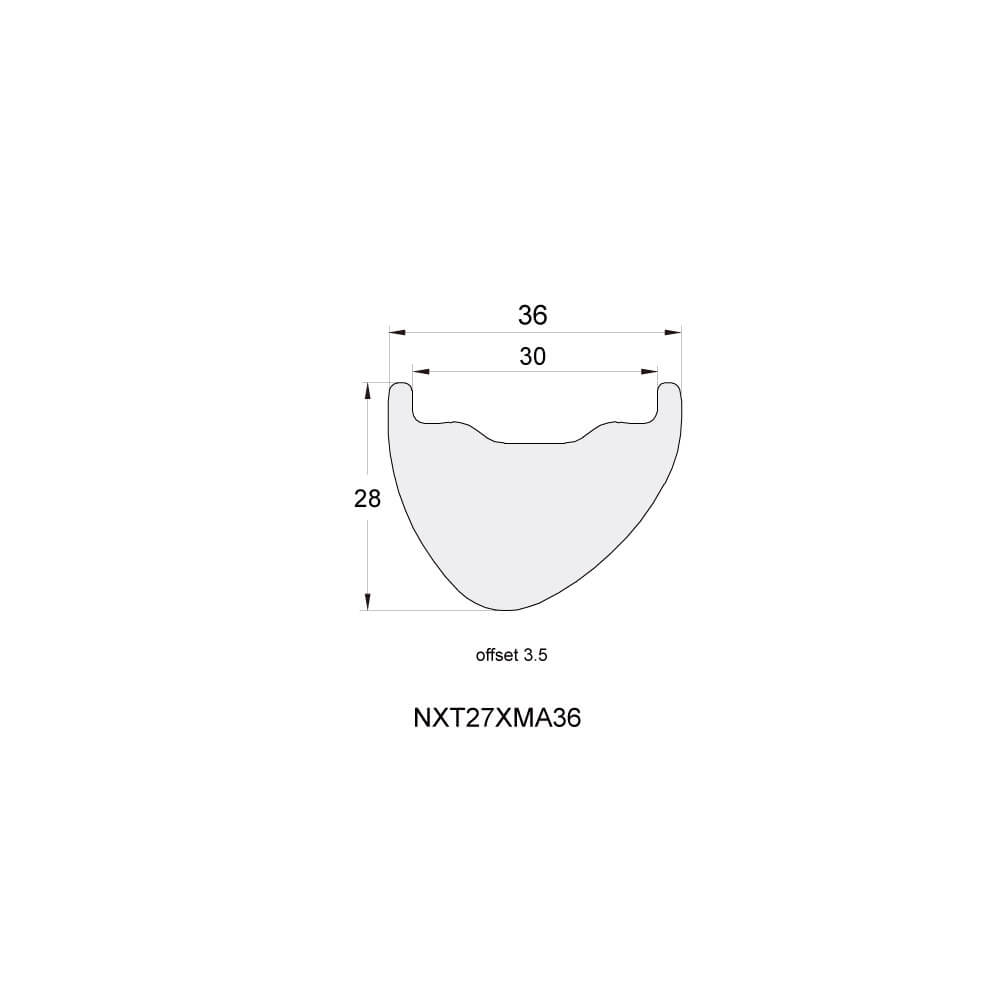

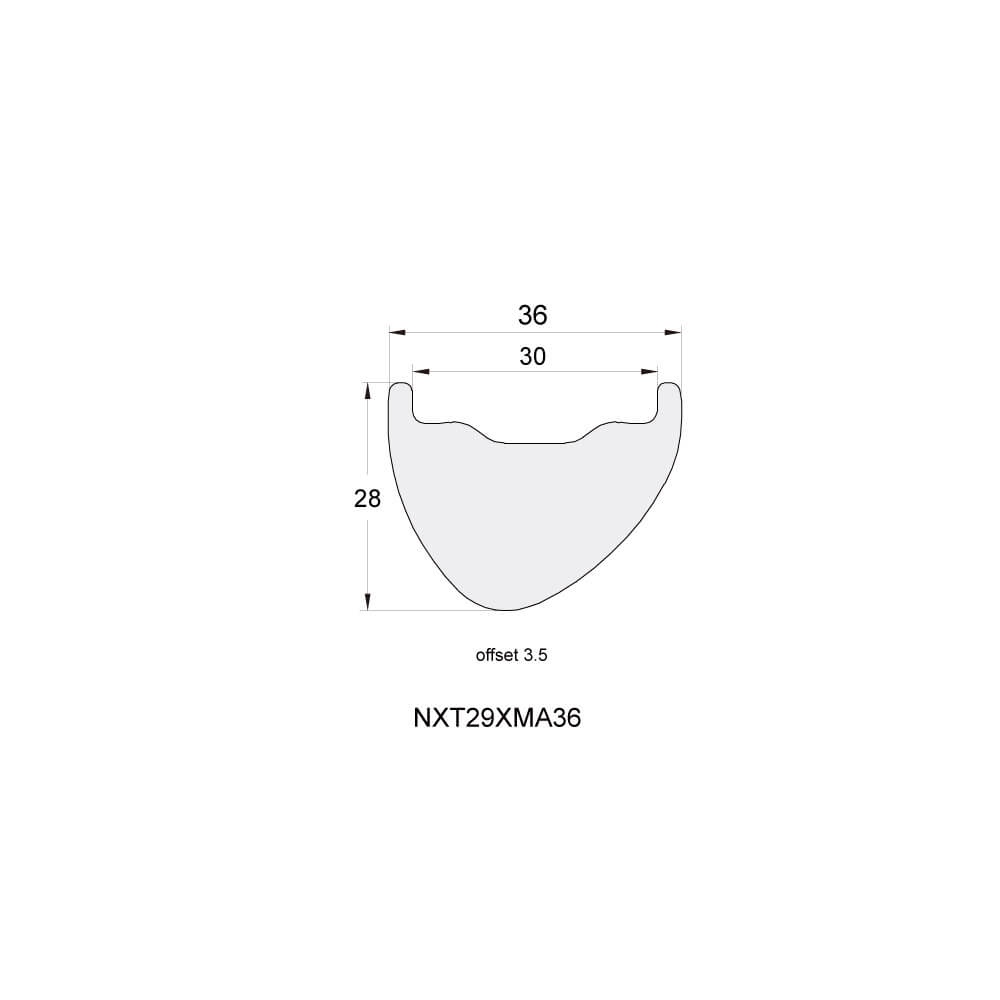

Dimension (XMA SERIES)
Offset: 3.5mm
Size: 29" / 27.5"
BSD: 622mm / 584mm
ERD: 585mm / 547mm
External Width: 36mm
Spoke Hole Dia.: 4.5mm
Depth: 28mm
Valve Hole Dia.: 6.5mm
Weight: 410g / 390g
Hole count: 32H
Rim Lip Thickness: 3.0mm

Recommendation
Tire Size: 2.0" ~ 2.55"
Max Spoke Tension: 130kgf
Weight Limit: 130kg
Max Tire Pressure: 60psi

Appearance
Weave: UD
Finish: Matte

Application
XC / AM / Trail / Enduro

Tubeless Compatible
Tubeless Compatible: This function allows you to run tubeless perfectly.

AIO System
AIO System: The AIO (all in one) system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight.
