Name: Lewis LHT Ultimate Axial Hydraulic Disc Brakes - 4 Titanium Pistons (Front & Rear)
Brand: Lewis
SKU: 49588003635447
Price: 728.0 SGD
Availability: InStock

Description
Shipping & Return

Description

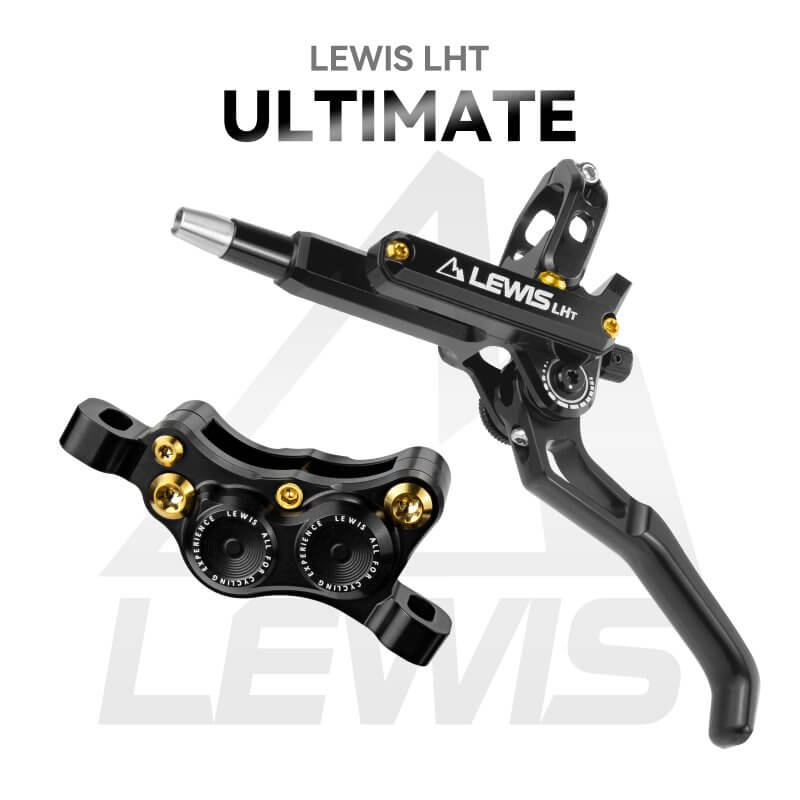

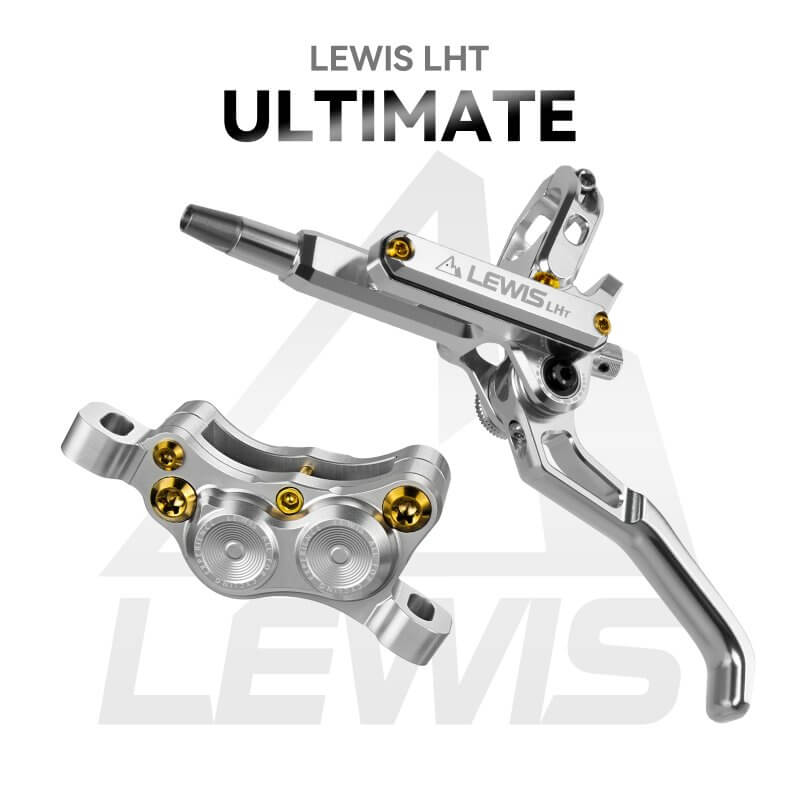

Lewis LHT Axial Hydraulic Disc Brakes - Titanium Pistons (Front & Rear)

Downhill, Enduro, All-Mountain

High-precision CNC machining technology

Patented Triple Adjustments Technology for Leverage Ratio & Lever Reach & Bite Point.

4x17mm Titanium+Ceramic pistons with TP-40 sintered Brake pads.

Mineral Oil

Ultra light lever action, Powerful but predictable braking force.

Bearing pivots provide superior modulation and feel.

Front+Rear Brakes weight = 639g(Oil Hose included), 422g without Oil Hose.

Approx. 68g for titanium parts, reduction weight of approx. 39g, compared to stainless steel components

SPECIFICATIONS

Axial MASTER CYLINDER
Material	CNC 7075T6 Aluminum
Color	Black, Silver, Nebula, customized colors
Clamp Type	Split
Screws	Titanium
ADJUSTABLE LEVER REACH	YES, Tool Free
ADJUSTABLE PAD BITE POINT	Yes, with 2mm Allen key

LEVER BLADE
Material	CNC 7075 T6 Aluminum
Color	Black, Silver, customized colors
Brake lever version	1 Finger

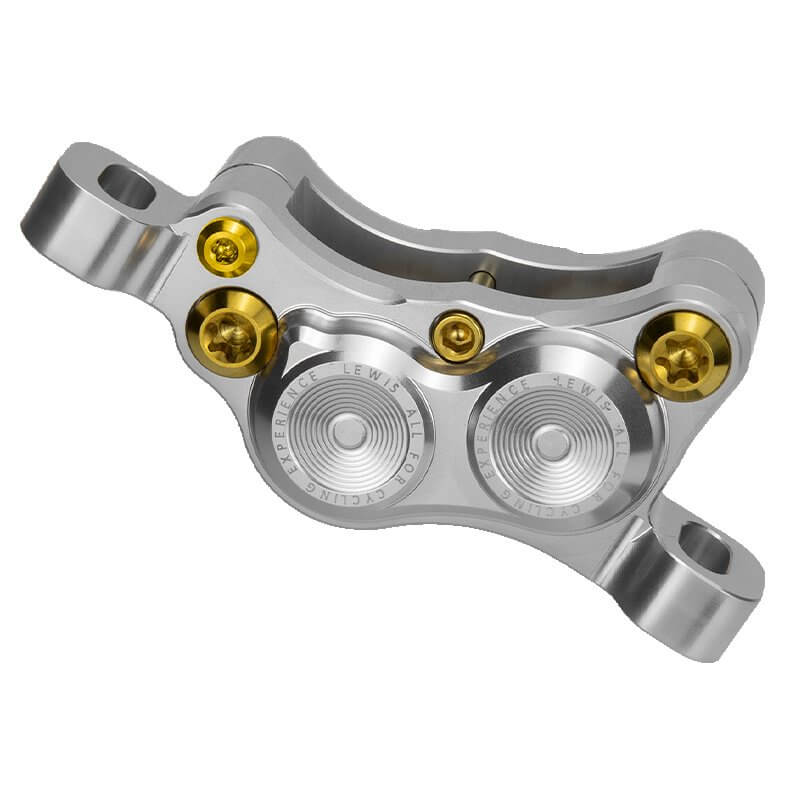

CALIPER
Material	CNC 7075 T6 Aluminum
Color	Black, Silver, Black & Silver, customized colors
MOUNT TYPE	Post mount
Piston	4 x 17mm Titanium + Ceramic Pistions
Screws	Titanium
Pad type	Metallic

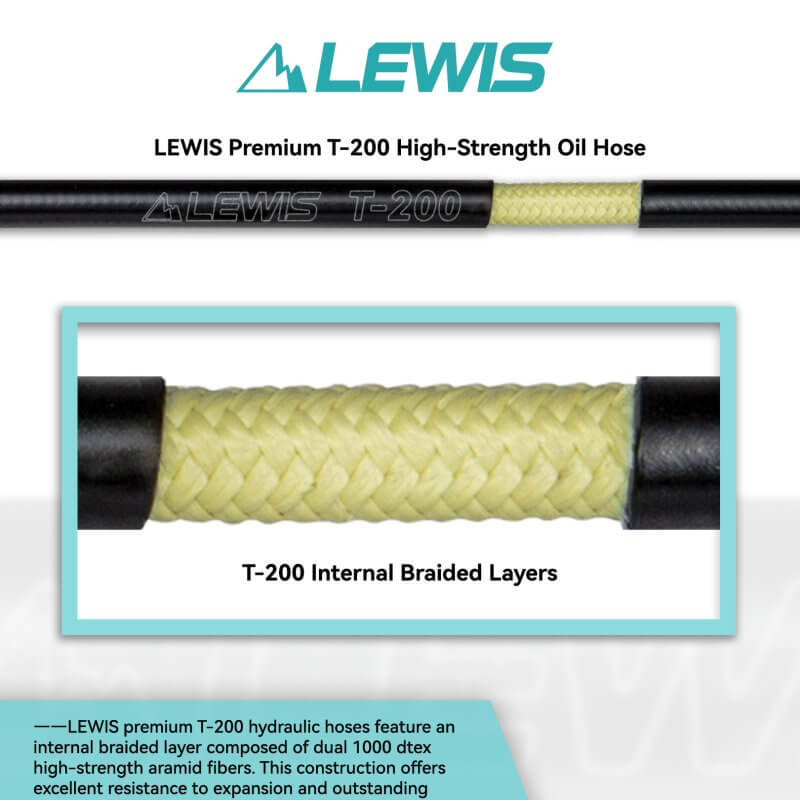

Hose
Hose size	Outside Diameter 5mm，Bore 2.2mm
Hose length	90cm front /165 cm rear
Hose finish	Black, Braided
INTENDED USE	Enduro, Downhill, All-Mountain, E-bike, Dirtbike
Rotors	Not included, optional (180 mm\|200mm \| 203 mm\|220mm \| 223 mm)
Adapter	Not included
WEIGHT	Master Cylinder 94g, Caliper 117g
Oil	Mineral oil
Bleed Kit Recommendation	Lewis Bleed Kit

Technology

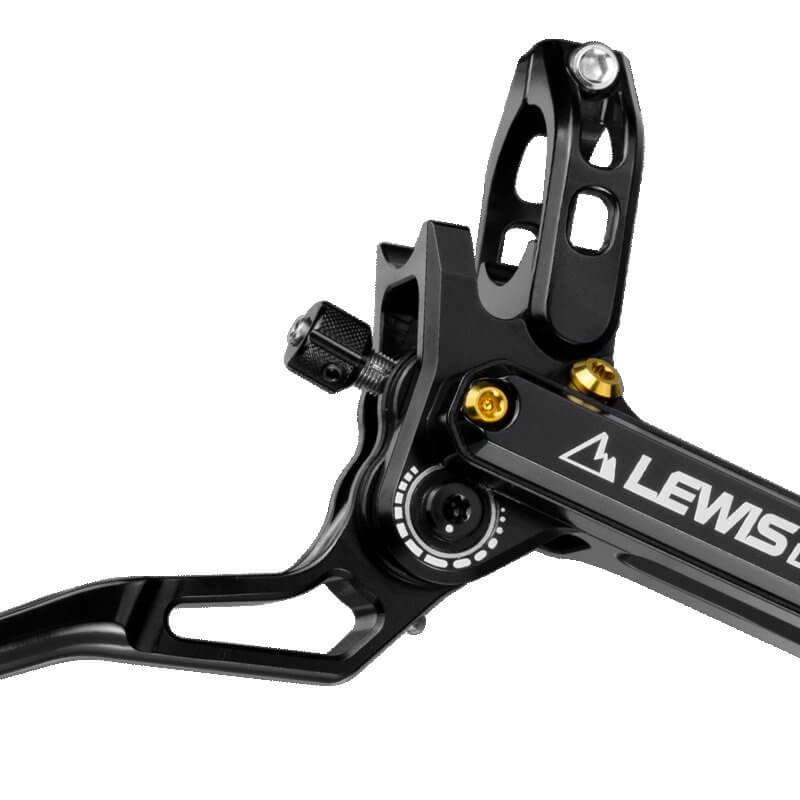

Bite Point & Lever Reach Adjustment

Lewis' patented technology for dual adjustment of lever reach & bite point allows you to customize the feel to your preference for superior performance out on the trails.

Reach(tool free), bite point(with allen key).
Leverage Ratio Adjustment

The patented Free Lever Adjustment technology allows the lever ratio to beadjusted by moving the center point of the brake lever.
4x17mm Pistons

Upgraded 4x17mm pistons, with titanium bolts, high strength and light weight.

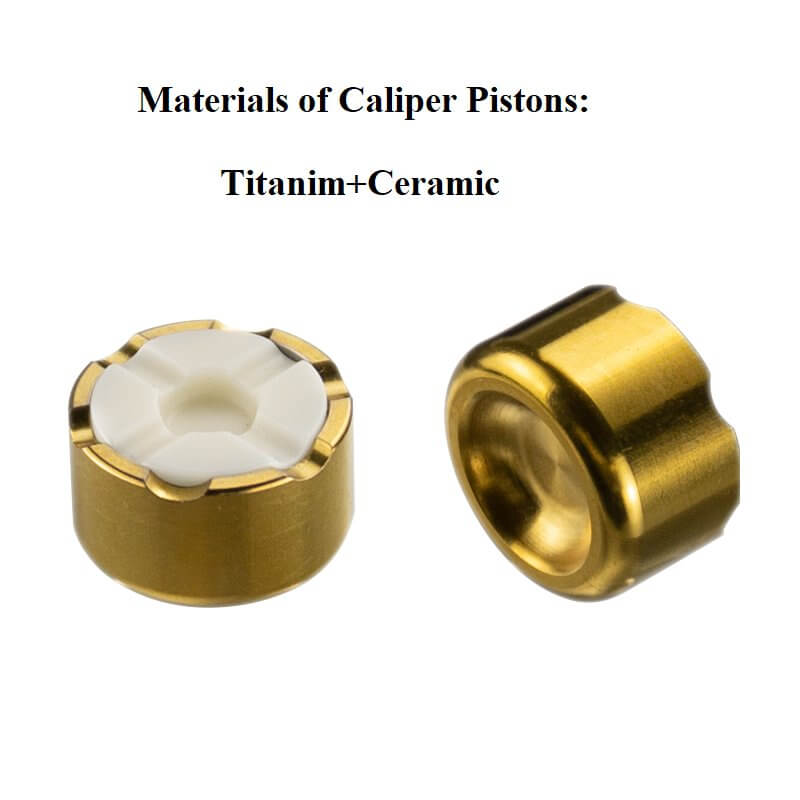

Titanium Pistons with Ceramic Insulation

In high-intensity use environments, the good high-temperature thermal conductivity of the titanium material complements the ceramic thermal insulation, allowing the pads to conduct and dissipate heat more evenly.
Anti-Leak Oil System

Detachable Olive Head used in Anti-leak System makes it easier for the rider to disassemble the brake hose.

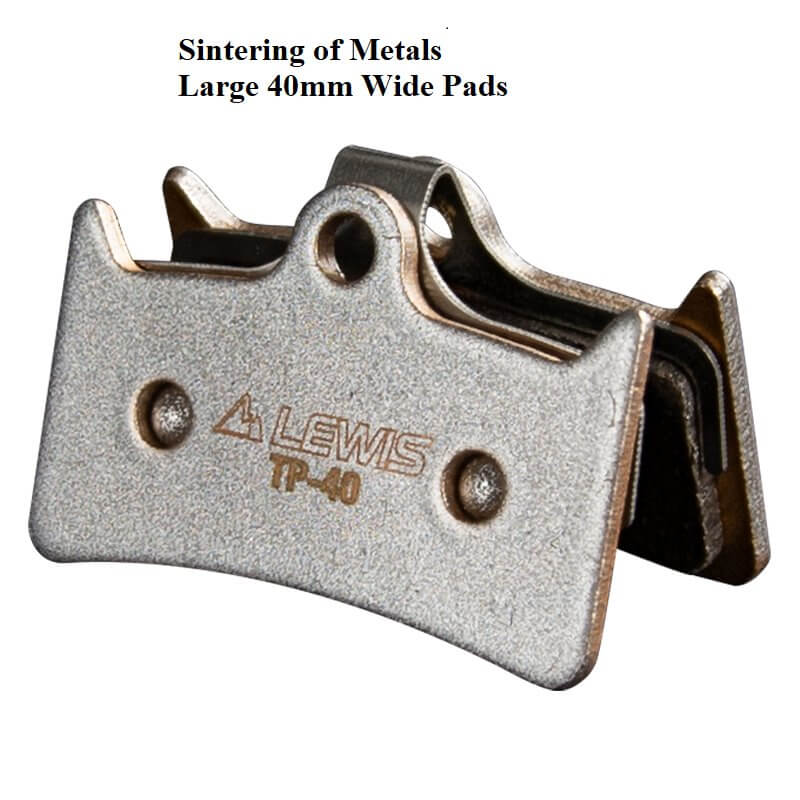

TP-40 Sintered Brake Pads

LHT Ultimate uses a 40mm wide sintered metal TP-40, a larger area meant for better wear resistance and heat decay performance.
