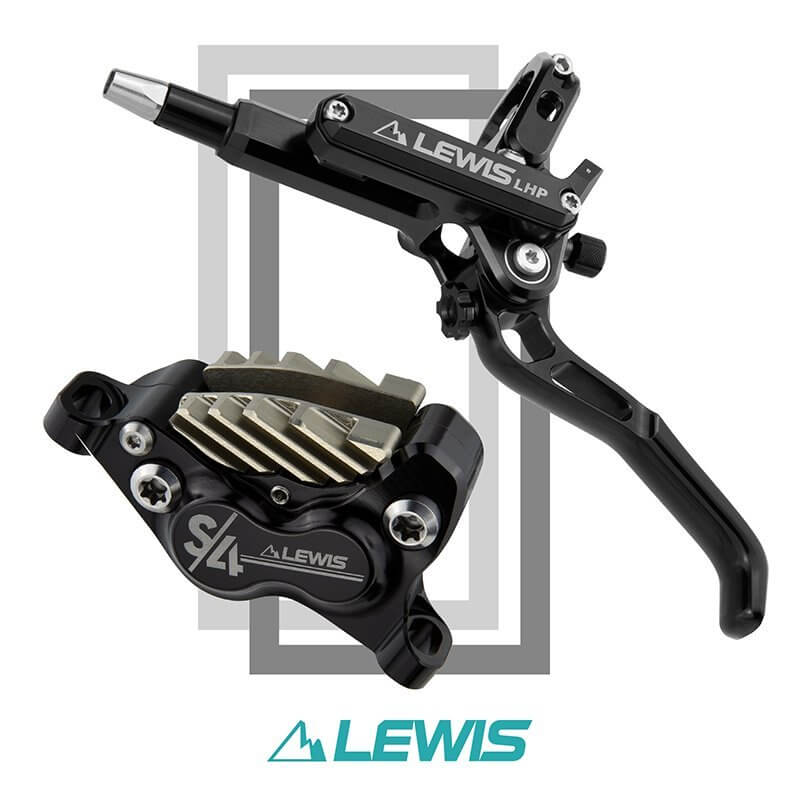

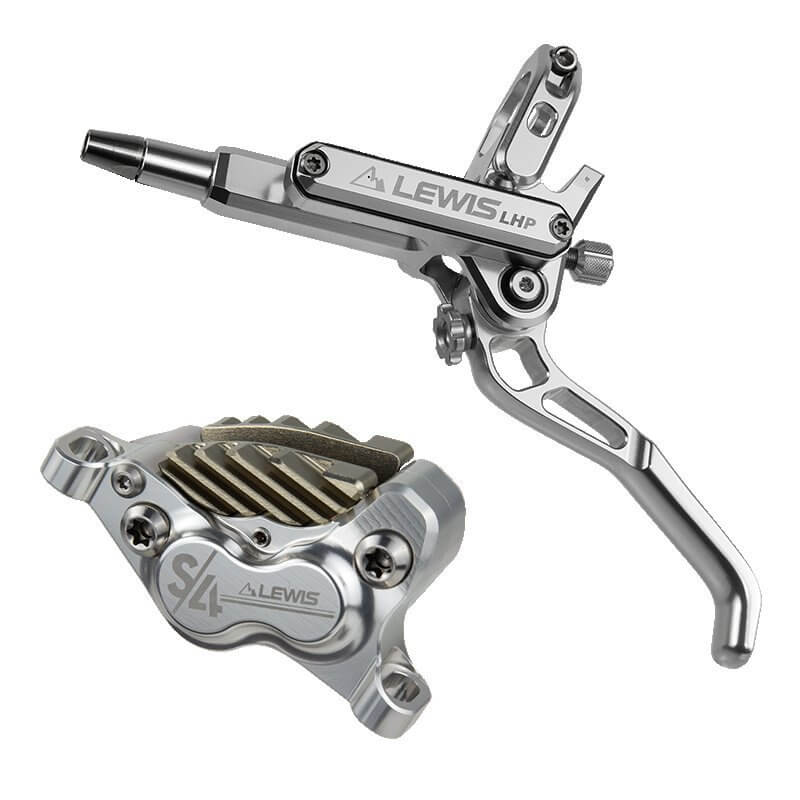

Name: Lewis LHP S4 Axial Hydraulic Disc Brakes with Cooling Fins - 4 Pistons (Front & Rear)
Brand: Lewis
SKU: 49588054884599
Price: 630.0 SGD
Availability: InStock

Description
Shipping & Return

Description

Downhill & Enduro

Material: 7075 T6 Aluminum

Piston: 4 pistons (2x14mm, 2x17mm)

Mineral Oil

Three Adjustment For LEVER REACH & BITE POINT & LEVERAGE RATIO

Independent cooling fins design for better high temperature performance

Removable Olives used in Anti-oil loss system connector

Upgraded leverage ratio adjustment knob

Single brake weight: 249g (without oil hose and brake pads)

Single brake lever: 98g

Single caliper: 151g( without brake pads)

SPECIFICATIONS

MASTER CYLINDER
Type	Axial
Material	CNC 7075T6 Aluminum
Body Finish	Black, Silver
Clamp Color	Black, Silver
Clamp Type	Split
Screws	Stainless Steel
Adjustable Lever Reach	YES, Tool Free
Adjustable Pad Bite Point	Yes, with 2mm Allen key
Adjustable Leverage Ratio	1.5mm Allen Key to loosen the set screws first

LEVER BLADE
Material	CNC 7075 T6 Aluminum
Color	Black, Silver
Brake lever version	1 Finger

CALIPER
Material	CNC 7075T6 Aluminum
Color	Black, Silver
MOUNT TYPE	Post mount
Piston	2x14mm, 2x17mm Stainless steel Pistons
Screws	Stainless Steel
Pads type	Sintered TP-37 and Semi-Metallic LP-37

Hose
Hose size	Outside Diameter 5mm，Bore 2.2mm
Hose length	90cm front /160 cm rear
Hose finish	Black, Braided T200 Oil Hose
INTENDED USE	Enduro, Downhill, All-Mountain
Rotors	Not included, optional (140 mm \| 160 mm \| 180 mm \| 203 mm \| 223 mm)
Adapter	Not included
WEIGHT	Lever 98g, Caliper 151g (without brake pads)
Oil	Mineral oil
Bleed Kit Recommendation	Lewis Bleeding Kit

Technology

Newly Upgraded Levera'geage Ratio Adjustment System

The LHP brake lever adopts a newly upgraded leverage ratio adjustment system, which has a better adjustment experience.

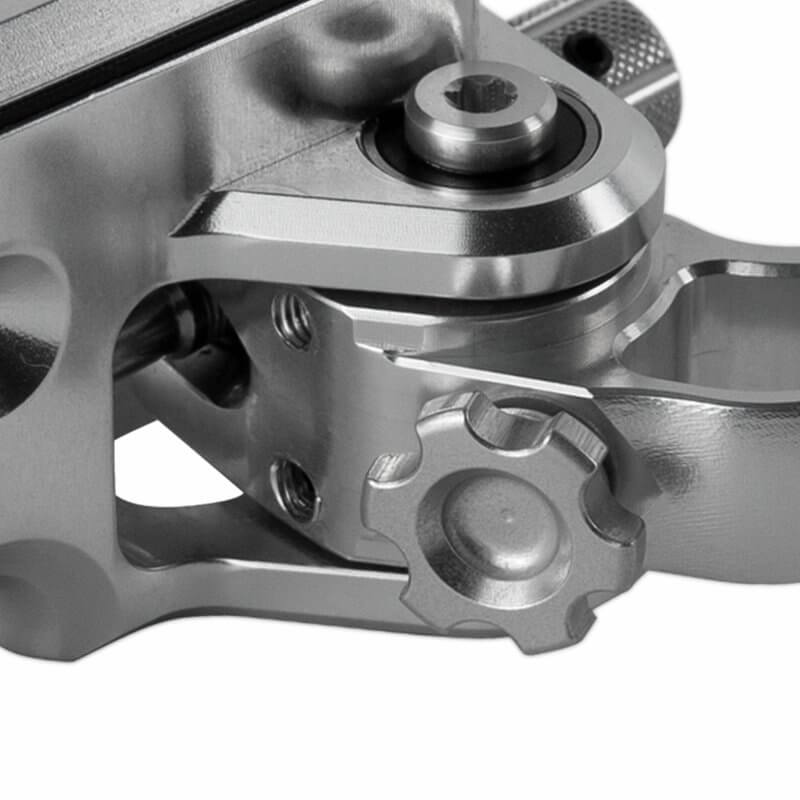

Leverage Ratio Adjustment

Loosen the lever ratio set screws and adjust the Lever ratio by turning the lever ratio adjustment knob.

Tighten the set screws after adjustments.

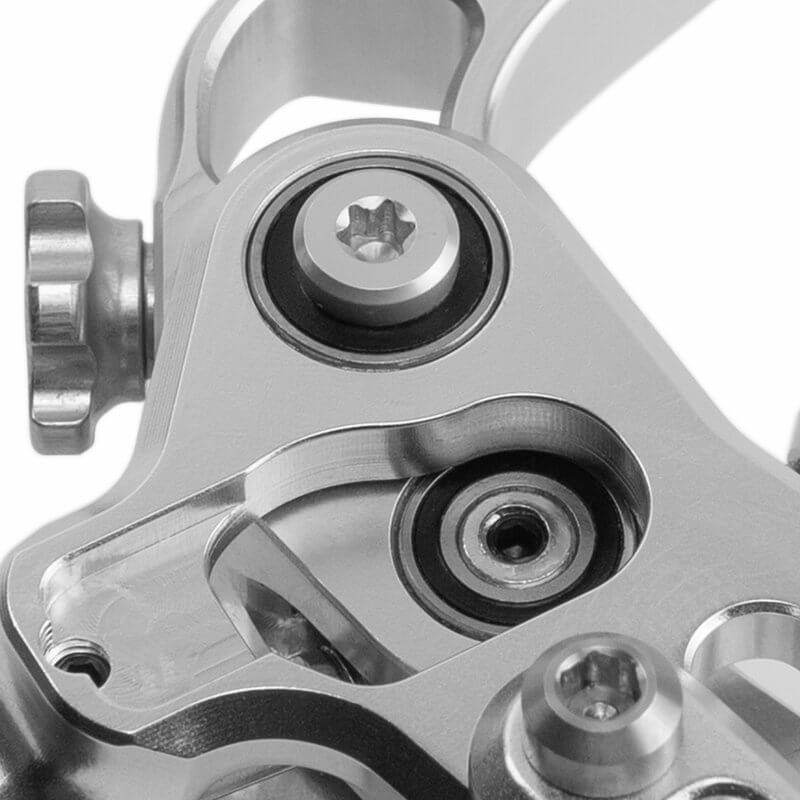

Dual Adjustment Of Lever Reach & Bite Point

The LHP lever features a patented technology for dual adjustment of Lever reach & bite point, combined with a new lever ratio adjustment system, for an incredible range and freedom of adjustment.

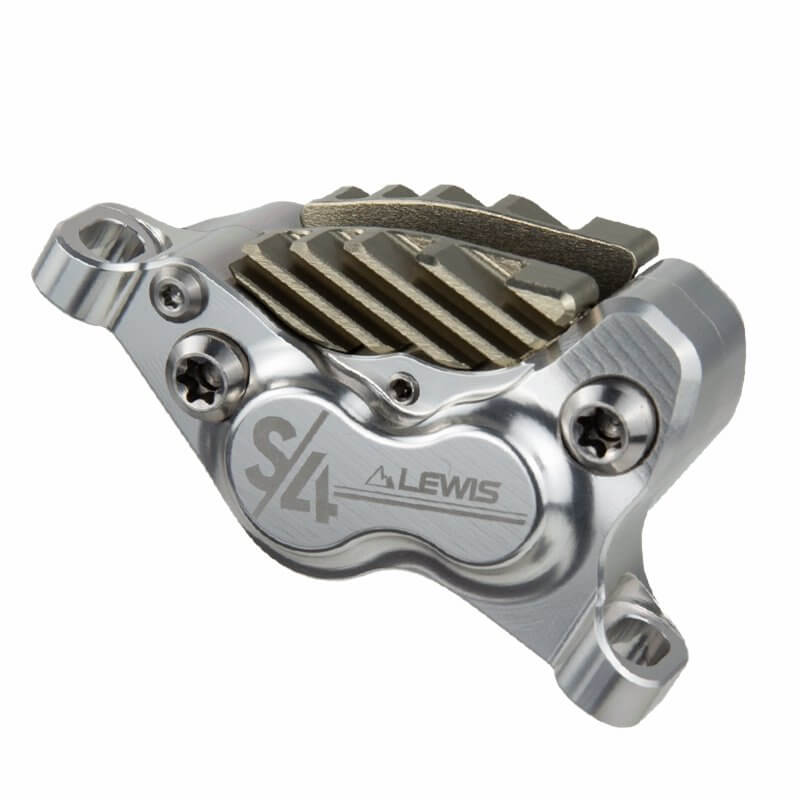

Independent Cooling Fins

Cooling Fins for better heat dissipation performance

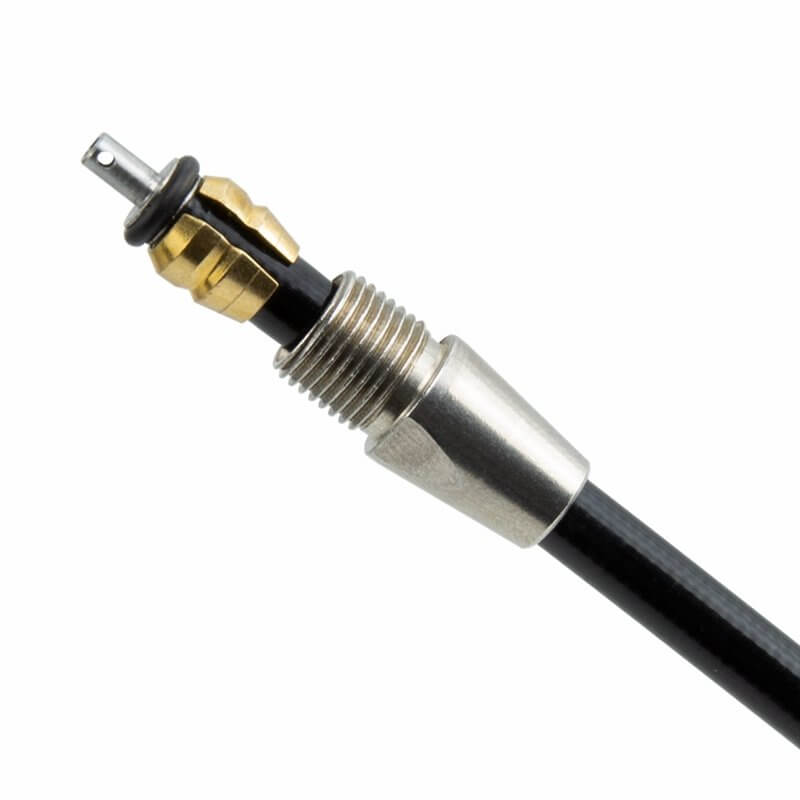

Anti-Leak Oil System

Use Anti-leak oil system, which makes disassembly and assembly and internal wiring easier.

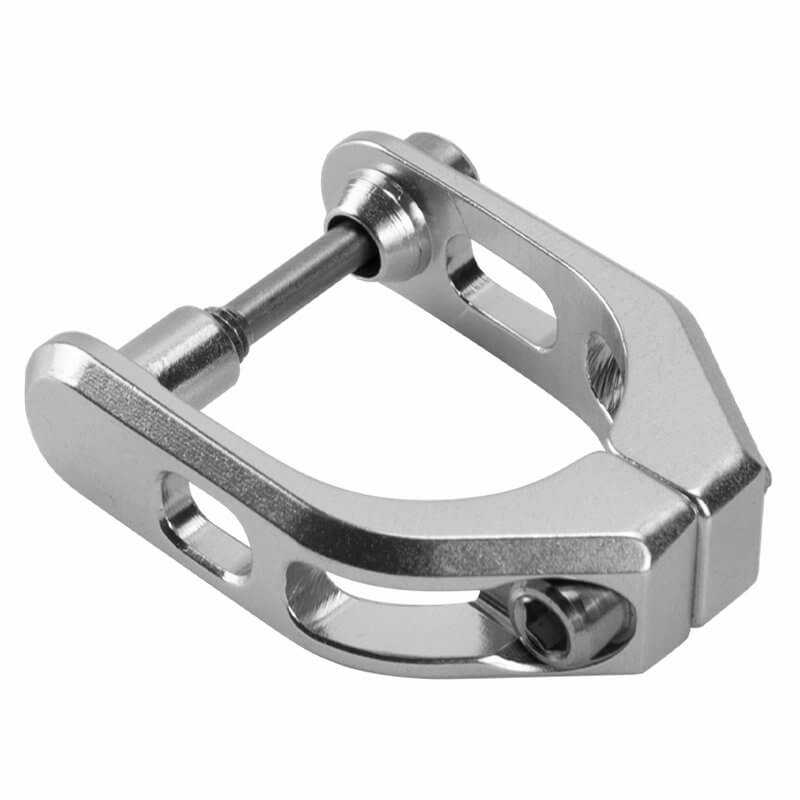

Standard Split Clamp With Upper And Lower Locking Design

Standard Split clamp with upper and lower locking design improves the fault-tolerant of clamp installation and meets the requirements of handlebar designs with different tolerances.

Torque: 3Nm

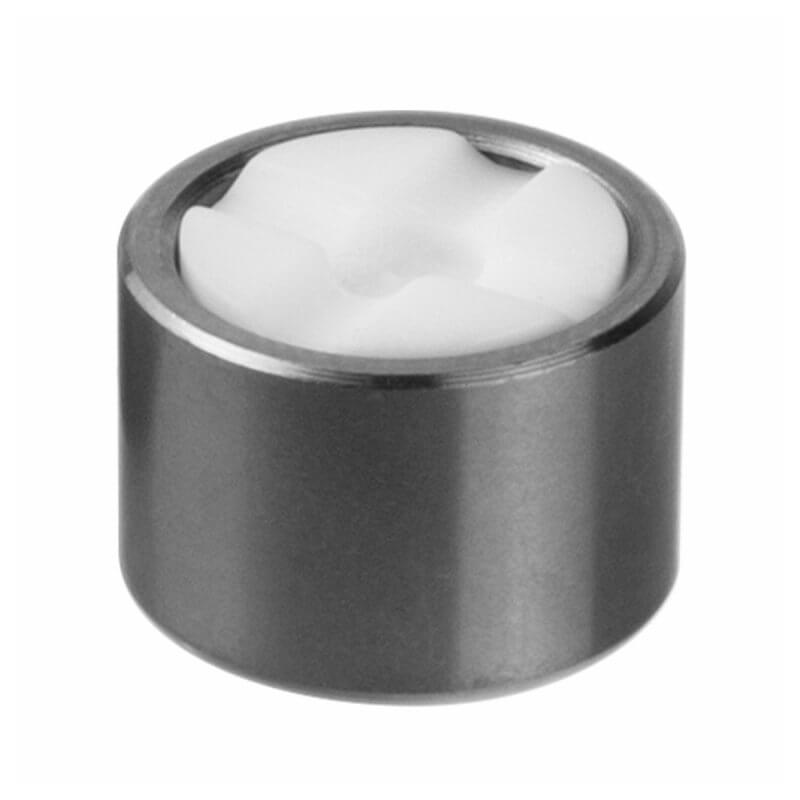

Stainless steel Pistons

2x14mm, 2x17mm Stainless steel Piston with Insulation Layer
