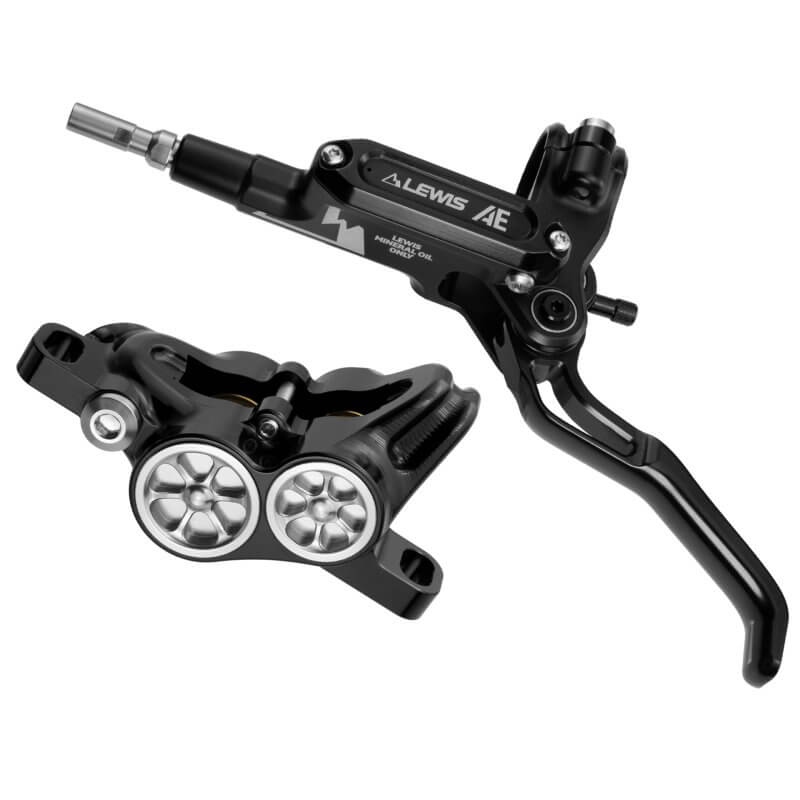

Name: Lewis AE Axial Hydraulic Disc Brake - 4 Piston (Front & Rear)
Brand: Lewis
SKU: 49588161806583
Price: 330.0 SGD
Availability: InStock

Description
Shipping & Return

Description

The AE brake lever features a completely new feel tuning, providing a firmer and more substantial sensation compared to the LH series. It is better suited for riders who prefer a higher feedback force from the brake lever.

The AE brake uses Lewis's latest integrated CNC caliper, offering higher caliper rigidity, longer maintenance intervals, and extended lifespan.

AE brakes are made of aerospace-grade 7075 aluminum, which are cut and formed by CNC high-precision, with high strength and light weight.

Single brake lever weight: 112g; Single caliper weight: 108g

The 14mm + 17mm asymmetric piston design enhances brake linear feel, ensures even brake pad pressure distribution, and balances wear.

Up to four precision bearings make up the pivot point of the brake lever, providing riders with an exceptional braking experience down to the finest details.

SPECIFICATIONS

MASTER CYLINDER
Type	Axial
Material	7075 aluminum
Body Finish	Black
Clamp Color	Black
Clamp Type	Split
Screws	Stainless Steel
ADJUSTABLE LEVER REACH	YES, Tool Free


LEVER BLADE
Material	7075 Aluminum
Color	Black
Brake lever version	1 Finger

CALIPER
Material	7075 Aluminum
Color	Black
MOUNT TYPE	Post mount
Piston	2 x 14mm + 2 x 17mm Stainless steel Pistions
Screws	Stainless Steel
Pad type	Metallic

Hose
Hose size	Outside Diameter 5mm，Bore 2.2mm
Hose length	90cm front /165cm rear, can be shorten to adapt bike
Hose finish	Black, Braided Lewis T150 Oil Hose
INTENDED USE	Enduro, Downhill, All-Mountain
Rotors	Not included, optional (160mm\|180 mm\|200mm \| 203 mm\|220mm \| 223 mm)
Adapter	Not included
WEIGHT	Single brake lever : 112g; Single caliper: 108g
Oil	Mineral oil

Technology

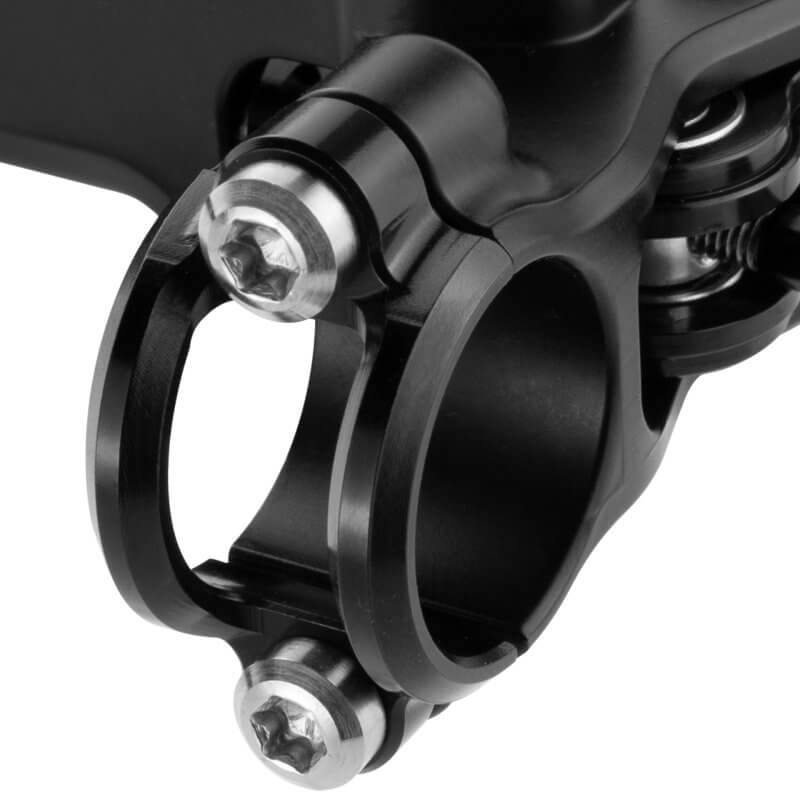

New Split clamp

Higher strength, more portable.

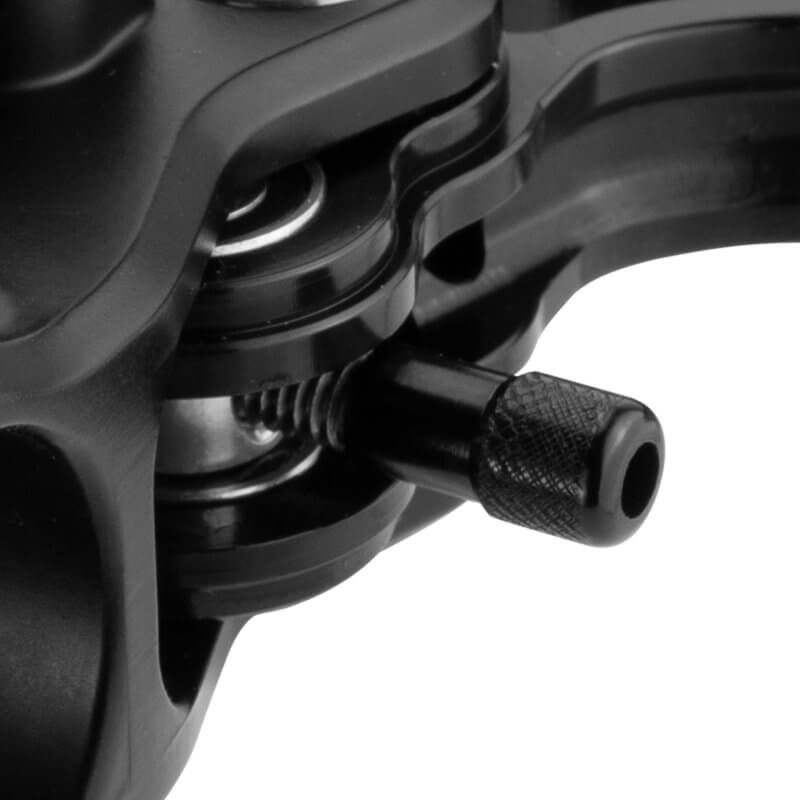

Brake lever reach adjustment

Rotate the brake lever reach knob to adjust the lever reach.

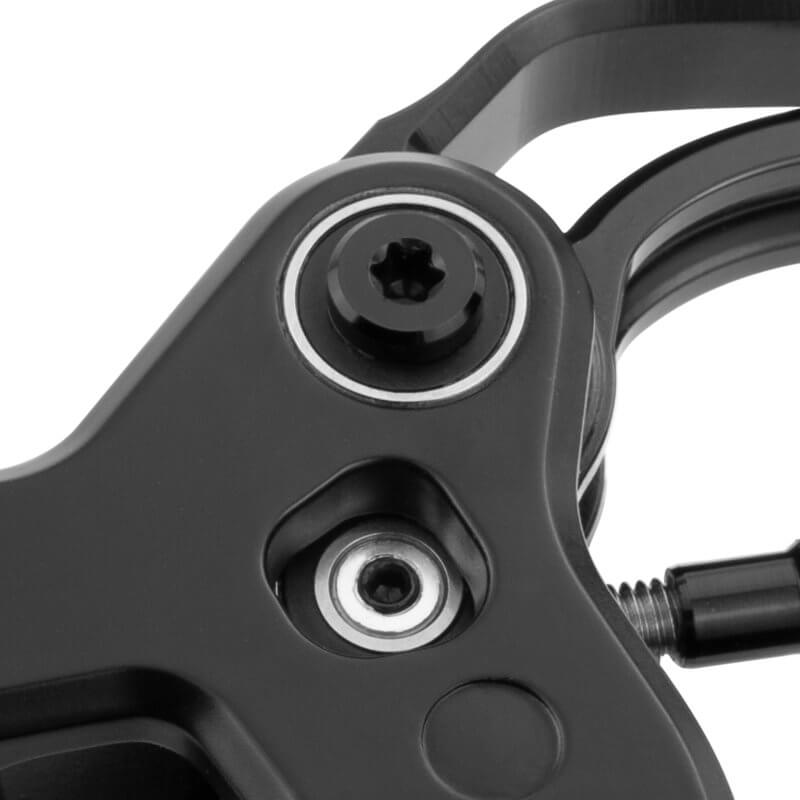

Up to four precision bearings

Each movable pivot is secured by two precision bearings, totaling four bearings, ensuring stability and smooth operation without play.

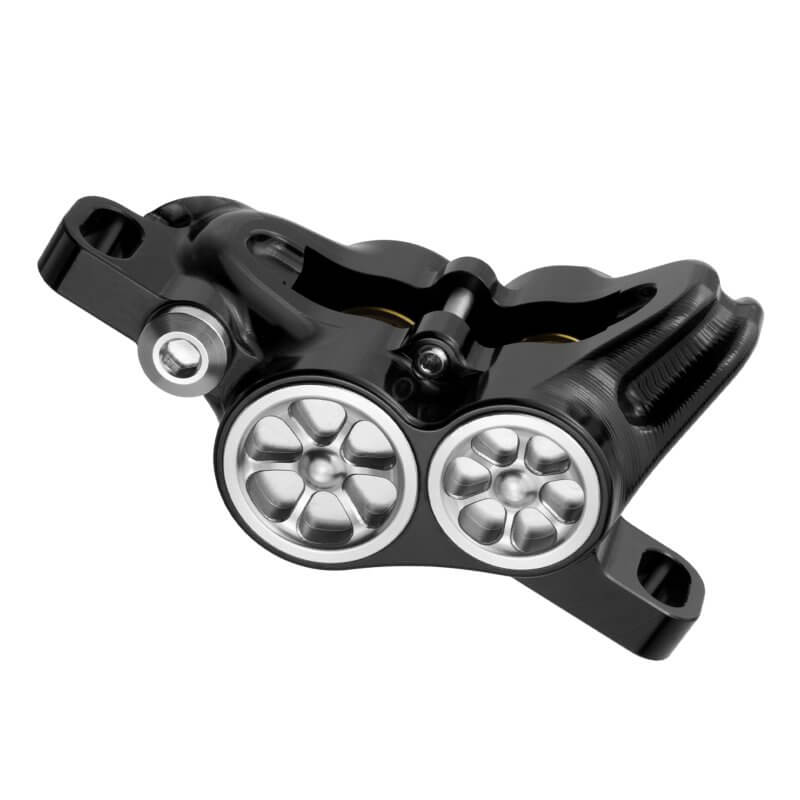

One Body Caliper

In a high-pressure hydraulic environment, the caliper deformation is minimal, resulting in more stable braking performance.
