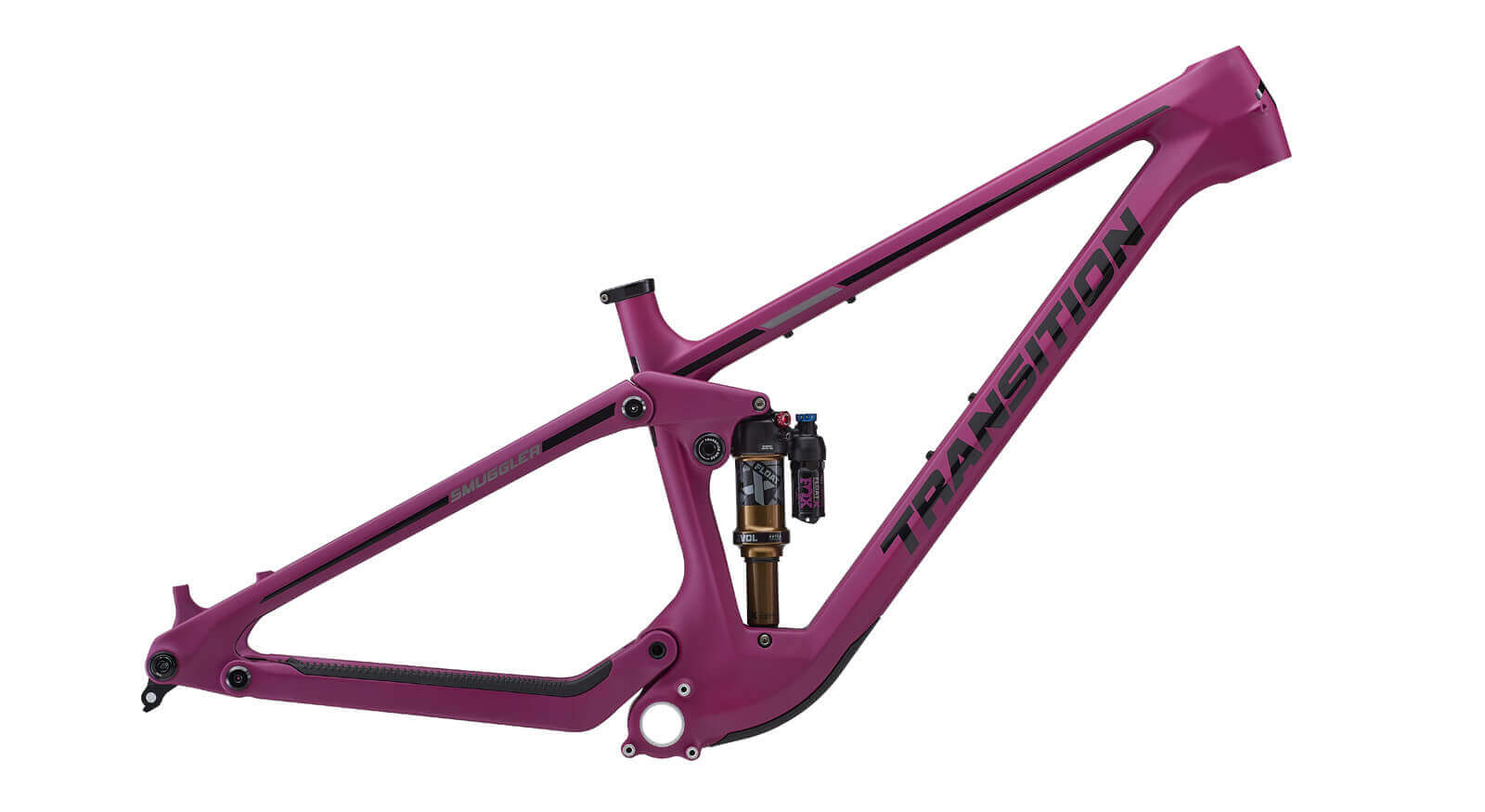

Frameset: Smuggler Carbon - Fox Float X Factory

Size :
Color :
Build Spec :
Terms & conditions

Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.

With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.

Fox Float X Factory - (210x50mm)
FSA NO.42/48/ACB


We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

With nearly 24% progression and the most current evolution of our GiddyUp suspension kinematic, the Patrol has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.

The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Patrol has 160mm of rear wheel travel when used with the supplied 205mm x 60mm stroke shock. It is also possible to install a longer, 205mm x 65mm stroke shock to increase the rear wheel travel to 170mm if you are after a longer travel experience.

A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.


Frame Specifications

REAR TRAVEL: 130mm (Compatible with 140mm)
SIZES: Carbon/Alloy: SM, MD, LG, XL, XXL
COLORS: Carbon/Alloy: Espresso, Orchid
FRAME BEARINGS:  2x 6903, 4x 6902, 4x 6802
FORK AXLE TO CROWN: 552mm (140mm travel - Includes Headset)
REAR SHOCK SIZE:  210mm x 50mm / 130mm (Compatible with 210mm x 55mm / 140mm )
SHOCK HARDWARE:  25mm x 8mm Bottom, 30mm x 8mm Top
HEADSET (TOP):   Carbon: IS42
  Alloy: 44mm Zero Stack
HEADSET (BOTTOM):   Carbon: IS52
  Alloy: 56mm Zero Stack
BB SHELL:   73mm BSA Threaded
CHAINLINE:   52-55mm
REAR BRAKE MOUNT:   180mm Post Mount, Max Rotor Size 203mm
REAR AXLE:   Transition Axle For UDH, 12mm x 148mm Spacing
ISCG TABS:   ISCG 05 (3mm offset outward from BB face to accommodate boost chainline)
SEAT CLAMP:   Carbon: 37.0mm
  Alloy: 34.9mm
MAX SEATPOST INSERTION:                                          Carbon: Small 225mm | Medium 255mm | Large 295mm | X-Large 325mm | XX-Large 360mm
Alloy:    Small 220mm | Medium 250mm | Large 290mm | X-Large 320mm | XX-Large 355mm
  34T Standard Single Ring at 52mm Chainline
MAX TIRE SIZE:   29" x 2.5"
REAR SHOCK SAG: 130mm (50mm) = 14-16mm (28-32%)
140mm (50mm) = 15-17mm (27-31%)
