Frameset: Patrol Carbon - Fox Float X2 Factory

The Pure Bred Party Animal
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail

Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.

GIDDYUP SUSPENSION DESIGN

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

With nearly 24% progression and the most current evolution of our GiddyUp suspension kinematic, the Patrol has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.

The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Patrol has 160mm of rear wheel travel when used with the supplied 205mm x 60mm stroke shock. It is also possible to install a longer, 205mm x 65mm stroke shock to increase the rear wheel travel to 170mm if you are after a longer travel experience.

A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.

Frame Specifications

REAR TRAVEL:	160mm (Compatible with 170mm)
FRONT TRAVEL:	160mm (Compatible with 170mm single crown fork or dual crown forks)
WHEEL SIZE:	29" Front / 27.5" Rear
SIZES:	SM, MD, LG, XL

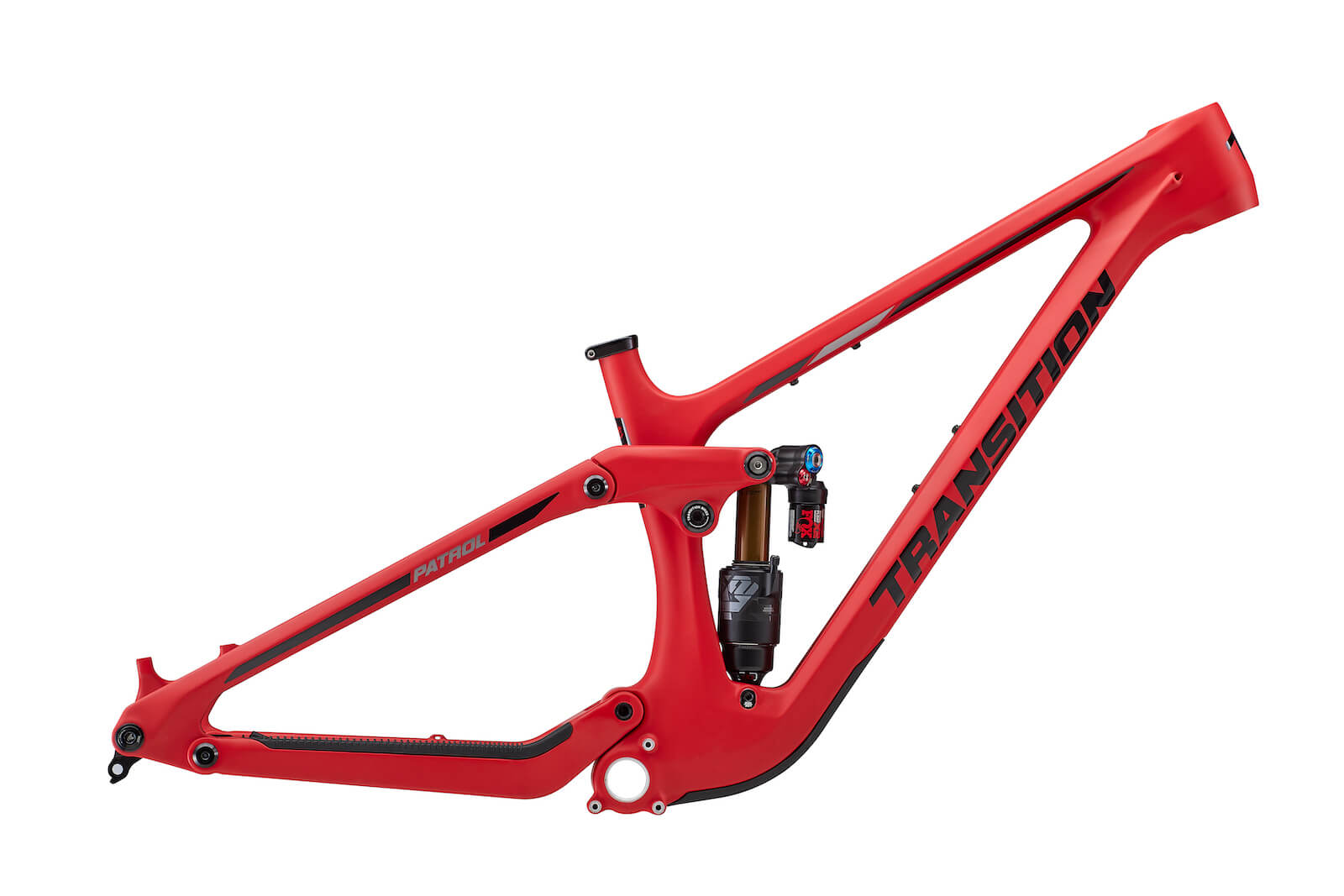

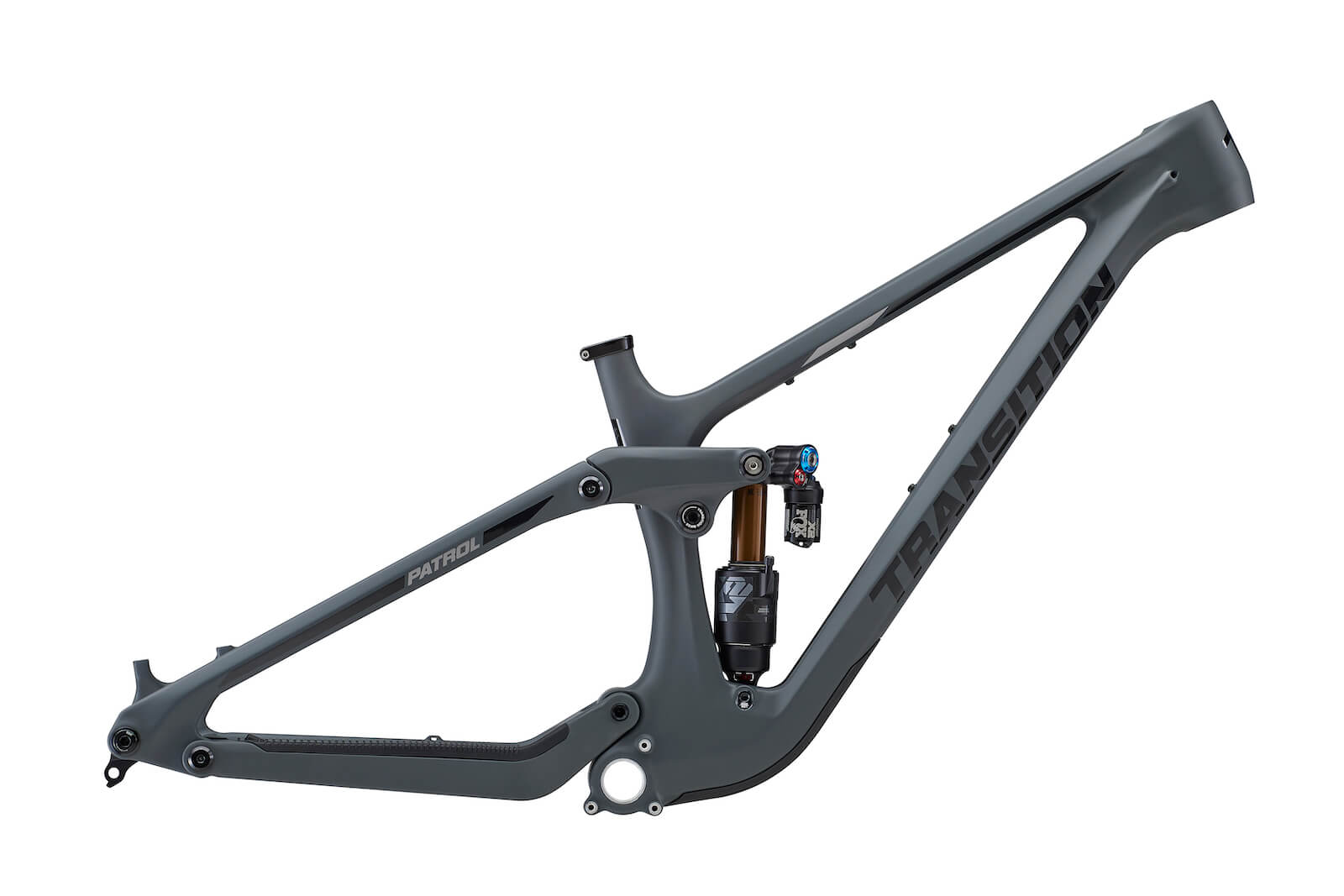

COLORS:	Carbon: Moonshadow, Bonfire Red   Alloy: Blueberry, Raw, Moonshadow, Bonfire Red
FRAME BEARINGS:	2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
FORK AXLE TO CROWN:	574mm at 160mm
FORK OFFSET:	44mm
REAR SHOCK SIZE:	205mm x 60mm (Compatible with 205mm x 65mm)
SHOCK HARDWARE:	Trunnion Mount Top / 30mm x 8mm Bottom
HEADSET (TOP):	56mm Zero Stack
HEADSET (BOTTOM):	56mm Zero Stack
BB SHELL:	73mm BSA Threaded
CHAINLINE:	52mm
REAR BRAKE MOUNT:	180mm Post Mount, Max Rotor Size 223mm
DERAILLEUR HANGER:	SRAM UDH
REAR AXLE:	Transition Axle For UDH, 12mm x 148mm Spacing
ISCG TABS:	ISCG05
SEATPOST DIAMETER:	31.6mm
SEAT CLAMP:	Carbon: 37.0mm   Alloy: 34.9mm
MAX SEATPOST	Carbon: Small 220mm | Medium 250mm | Large 290mm | XL 320mm   Alloy:      Small 200mm | Medium 230mm | Large 270mm | XL 300mm
MAX CHAINRING SIZE:	34T Standard Single Ring (Based on 52mm Boost Chainline)
MAX TIRE SIZE:	27.5 x 2.6
REAR SHOCK SAG:	160mm/60mm: 16-20mm (27-33%)   170mm/65mm: 18-22mm (28-34%)
